FCC ID O9P-E2-950
UHF narrow band licensed radio band transceiver module
by ELPRO Technologies Pty Ltd
Grantee Code: O9P Product Code: E2950
Latest application date: 2016-09-27
Device Images
FCC ID Device Details
| FCC ID | O9P-E2-950 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | O9P |
| Product Code | E2950 |
| Applicant Business | ELPRO Technologies Pty Ltd 🇦🇺 |
| Related Domains |  elpro.com.au |
| Equipment Class | UHF narrow band licensed radio band transceiver module |
| Test Firm | EMC Technologies NZ Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 928-929 MHz | Class II permissive change or modification of presently authorized equipment | 2016-09-27 |
| 932.5-935 MHz | Original Equipment | 2014-11-26 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2014-11-26 | PDF 210 KB |
| Internal Photos | Internal Photos | 2016-09-27 | PDF 975.8 KB |
| Internal Photos | Internal Photos | 2014-11-26 | PDF 606.4 KB |
| External Photos | External Photos | 2016-09-27 | PDF 145.4 KB |
| External Photos | External Photos | 2014-11-26 | PDF 425.3 KB |
| Label Info | ID Label/Location Info | 2014-11-26 | PDF 1.1 MB |

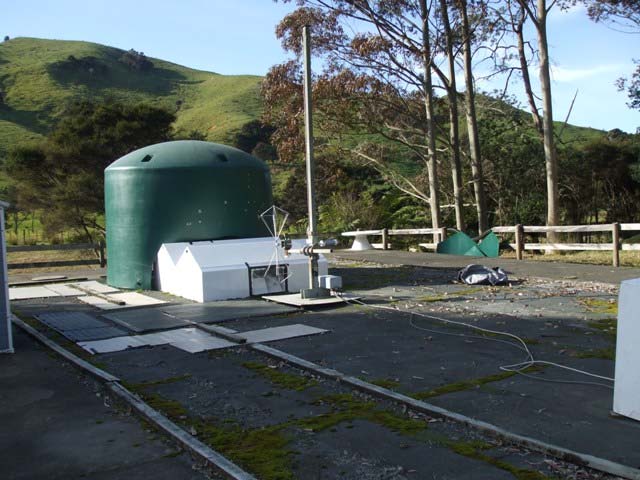

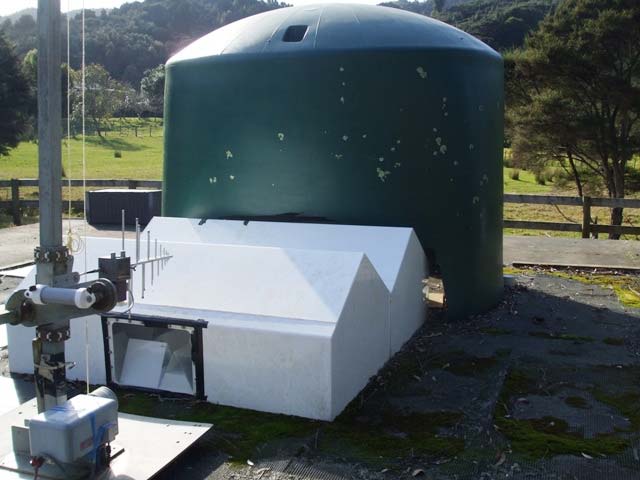

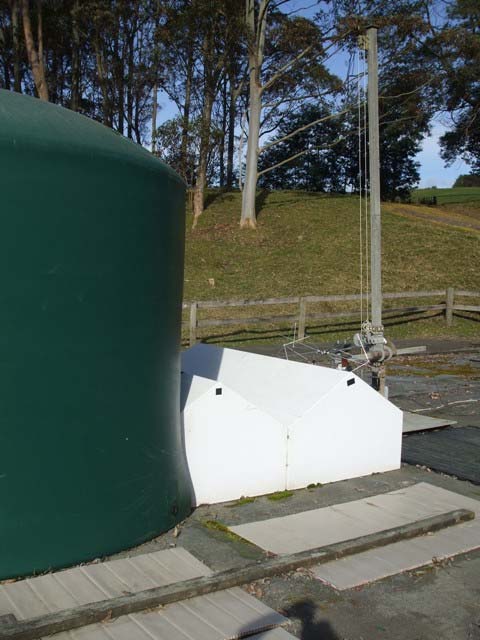

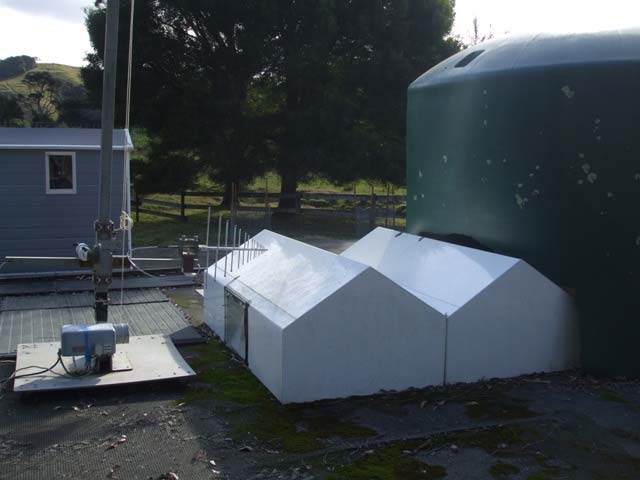

| Radiated Emissions Test Setup Photos | Test Setup Photos | 2016-09-27 | PDF 1.2 MB |

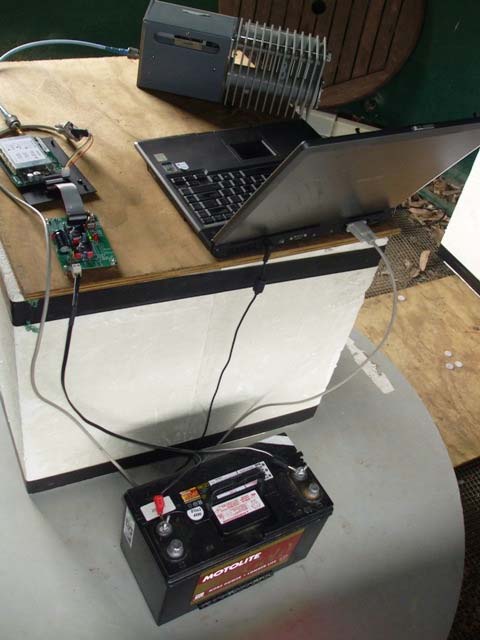

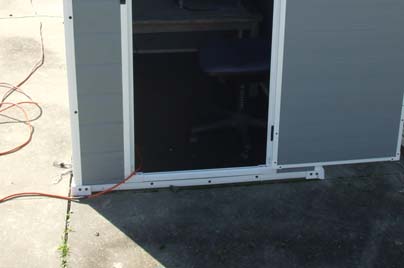

| Test Setup Photos | Test Setup Photos | 2014-11-26 | PDF 252.9 KB |
| Test REport Part 101 c2pc | Test Report | 2016-09-27 | PDF 778.1 KB |
| Test Report Part 90 c2pc | Test Report | 2016-09-27 | PDF 751.3 KB |
| Test Report Part 101 | Test Report | 2014-11-26 | PDF 810.8 KB |
| Test Report Part 90 | Test Report | 2014-11-26 | PDF 809.5 KB |
| Part 15 Attestation Letter | Cover Letter(s) | 2016-09-27 | PDF 24.2 KB |
| Frequency Programming Attestation | Attestation Statements | 2014-11-26 | PDF 77.6 KB |
| Authorization to Act letter | Cover Letter(s) | 2016-09-27 | PDF 142.4 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-09-27 | PDF 85.6 KB |
| Permissive Change Application Letter | Cover Letter(s) | 2016-09-27 | PDF 331.8 KB |
| Permissive Change Request Letter | Cover Letter(s) | 2016-09-27 | PDF 134.1 KB |
| Authorization Letter | Cover Letter(s) | 2014-11-26 | PDF 58.5 KB |
| Confidentiality Letter | Cover Letter(s) | 2014-11-26 | PDF 94.2 KB |
| Modular Approval Application | Cover Letter(s) | 2014-11-26 | PDF 186.8 KB |
| Radiation Hazard Assessment Part 101 | RF Exposure Info | 2016-09-27 | PDF 67.8 KB |
| Radiation Hazard Assessment Part 90 | RF Exposure Info | 2016-09-27 | PDF 67.4 KB |
| RF Exposure Part 101 | RF Exposure Info | 2014-11-26 | PDF 68.9 KB |
| RF Exposure Part 90 | Parts List/Tune Up Info | 2014-11-26 | PDF 68.8 KB |
| Tune Up | Parts List/Tune Up Info | 2014-11-26 | PDF 92.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 21.7 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 35.6 KB | |
| Schematics Metadata only | Schematics | PDF 586.1 KB | |
| Operational Description Metadata only | Operational Description | PDF 111.6 KB | |
| Part list Metadata only | Parts List/Tune Up Info | PDF 268.7 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 43.2 KB |
Application Information
| Application ID | EQXy/AK/oMouy6sXG4ntrA== |
|---|---|
| Final Action Date | 2016-09-27 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0013674825 |
| Model | E2-950 |
| Frequency Range | 928-929 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | UHF narrow band licensed radio band transceiver module |
| Responsible Party | John White, General Manager, johnw@elpro.com.au , 0061-7-3352-8600 |
| Test Firm | Andrew Cutler, EMC Technologies NZ Ltd., auklab@ihug.co.nz  , 64-9-360-0862 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Limited Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Limited Single Modular Approval. Power listed is conducted. Approval is limited to the module being installed into LED Roadway Lighting Ltd. hosts only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile or fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 90 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the grantee ensures that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| EQXy/AK/oMouy6sXG4ntrA== | 2016-09-27 | Class II permissive change or modification of presently authorized equipment |
| +wpiifNn9ZEepYGukPENuA== | 2014-11-26 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application EQXy/AK/oMouy6sXG4ntrA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 09/27/2016 Application Dated: 09/27/2016 |
| ELPRO Technologies Pty Ltd |
| 29 Lathe Street |
| Virginia |
| Queensland, 4014 Australia |
| Attention: John White , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | O9P-E2-950 |
| Name of Grantee: | ELPRO Technologies Pty Ltd |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | UHF narrow band licensed radio band transceiver module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 101 | 928.0 - 929.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 932.0 - 932.5 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 932.5 - 935.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 941.0 - 941.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 941.5 - 944.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 952.0 - 954.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 90 | 929.0 - 930.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 90 | 935.0 - 940.0 | 5.0 | 0.86 PM | 16K0F1D |
| Limited Single Modular Approval. Power listed is conducted. Approval is limited to the module being installed into LED Roadway Lighting Ltd. hosts only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile or fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 90 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the grantee ensures that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
EAS Grant - Application EQXy/AK/oMouy6sXG4ntrA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ELPRO Technologies Pty Ltd 29 Lathe Street Virginia Queensland, 4014 Australia |
Date of Grant: 09/27/2016 Application Dated: 09/27/2016 |
| Attention: John White , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | O9P-E2-950 |
| Name of Grantee: | ELPRO Technologies Pty Ltd |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | UHF narrow band licensed radio band transceiver module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 101 | 928.0 - 929.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 932.0 - 932.5 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 932.5 - 935.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 941.0 - 941.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 941.5 - 944.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 952.0 - 954.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 90 | 929.0 - 930.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 90 | 935.0 - 940.0 | 5.0 | 0.86 PM | 16K0F1D |
| Limited Single Modular Approval. Power listed is conducted. Approval is limited to the module being installed into LED Roadway Lighting Ltd. hosts only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile or fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 90 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the grantee ensures that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 11/26/2014 Application Dated: 11/26/2014 |
| ELPRO Technologies Pty Ltd |
| 29 Lathe Street |
| Virginia |
| Queensland, 4014 Australia |
| Attention: John White , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | O9P-E2-950 |
| Name of Grantee: | ELPRO Technologies Pty Ltd |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | UHF narrow band licensed radio band transceiver module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 101 | 932.5 - 935.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 941.0 - 944.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 90 | 935.0 - 940.0 | 5.0 | 0.86 PM | 16K0F1D |
| Limited Single Modular Approval. Power listed is conducted. Approval is limited to the module being installed into LED Roadway Lighting Ltd. hosts only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile or fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the grantee ensures that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
EAS Grant - Application +wpiifNn9ZEepYGukPENuA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ELPRO Technologies Pty Ltd 29 Lathe Street Virginia Queensland, 4014 Australia |
Date of Grant: 11/26/2014 Application Dated: 11/26/2014 |
| Attention: John White , General Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | O9P-E2-950 |
| Name of Grantee: | ELPRO Technologies Pty Ltd |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | UHF narrow band licensed radio band transceiver module |
| Modular Type: | Limited Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 101 | 932.5 - 935.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 101 | 941.0 - 944.0 | 5.0 | 0.86 PM | 16K0F1D | |
| 90 | 935.0 - 940.0 | 5.0 | 0.86 PM | 16K0F1D |
| Limited Single Modular Approval. Power listed is conducted. Approval is limited to the module being installed into LED Roadway Lighting Ltd. hosts only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile or fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the grantee ensures that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
| Mail To: |
