EB121 Bluetooth headset Test Setup Photos - FCC ID OA8EB121
FCC ID OA8EB121

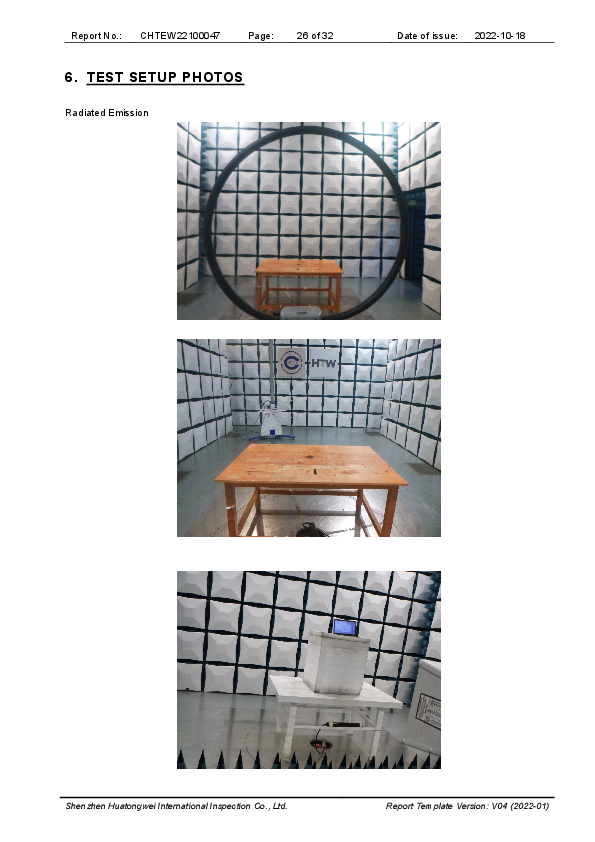

Test setup
Bluetooth headset
Document preview loads when visible.
Document Details
| FCC ID | OA8EB121 |
|---|---|
| Document ID | 6202066 |
| Document Type | Test Setup Photos |
| Description | Test setup |
| Document Title | CHTEW22100047-Chierda-FCC Part 15.247 BLE V04 |
| Applicant | Quanzhou Chierda Electronic Telecom Co., Ltd. |
| Equipment Class | Bluetooth headset |
| Product Code | EB121 |
| Application ID | SLrVQ47t65r2vR1eKRutaw== |
| Application Purpose | Original Equipment |
| Application Date | 2022-11-04 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0021687819 |
| Test Firm | Shenzhen Huatongwei International Inspection Co., |
| Certified By | Hans Hu Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2022-11-04 |
| Available | 2022-11-04 |
| Created | 2022-10-31 |
| Modified | 2022-10-31 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 5044574 |
| File SHA-256 | ea488cf0691ba2ead0becab63bd9d16728aff048cff25a5aaf45d2c683f3077c |
| FCC.gov Sources | FCC.gov 6202066, FCC.gov 6202049 |
