FR1500XTM Family Radio Transceiver Test Report - FCC ID OAJFR1500XTM
FCC ID OAJFR1500XTM

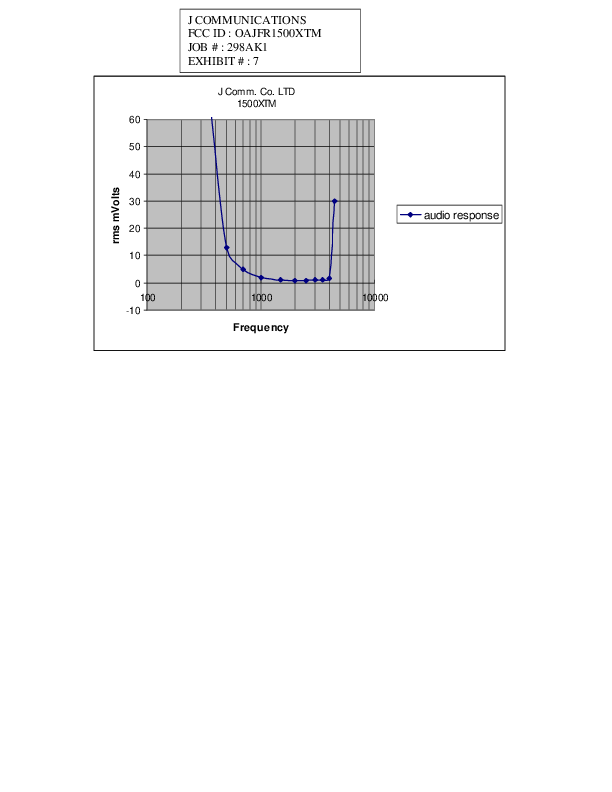

Audio frequency response plot
Family Radio Transceiver
Document preview loads when visible.
Document Details
| FCC ID | OAJFR1500XTM |
|---|---|
| Document ID | 145464 |
| Document Type | Test Report |
| Description | Audio frequency response plot |
| Applicant | J Communications Co Ltd |
| Equipment Class | Family Radio Transceiver |
| Product Code | FR1500XTM |
| Application ID | A9bMhAGJdRZ86APlT3kRgA== |
| Application Purpose | Original Equipment |
| Application Date | 2001-06-14 |
| Frequency Range | 462.563-467.713 MHz |
| FRN | 0005836960 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | Mario R. de Aranzeta Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2001-04-18 |
| Available | 2001-06-14 |
| Created | 2001-04-18 |
| Modified | 2001-04-18 |
| Pages | 1 |
| File Type | Microsoft Word |
| File Size | 26113 |
| File SHA-256 | 2cd4f8cd1affca1f2f14077f8fe4517a64009caf8473637dc602caca210aa97f |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 145464 |
