ALPHA14002 Alpha-numeric pager Block... - FCC ID OBMALPHA-1-400-2

FCC ID OBMALPHA-1-400-2

Block Diagram

Alpha-numeric pager

by VTech Connect Limited

Document preview loads when visible.

Document Details

FCC IDOBMALPHA-1-400-2
Document ID36499

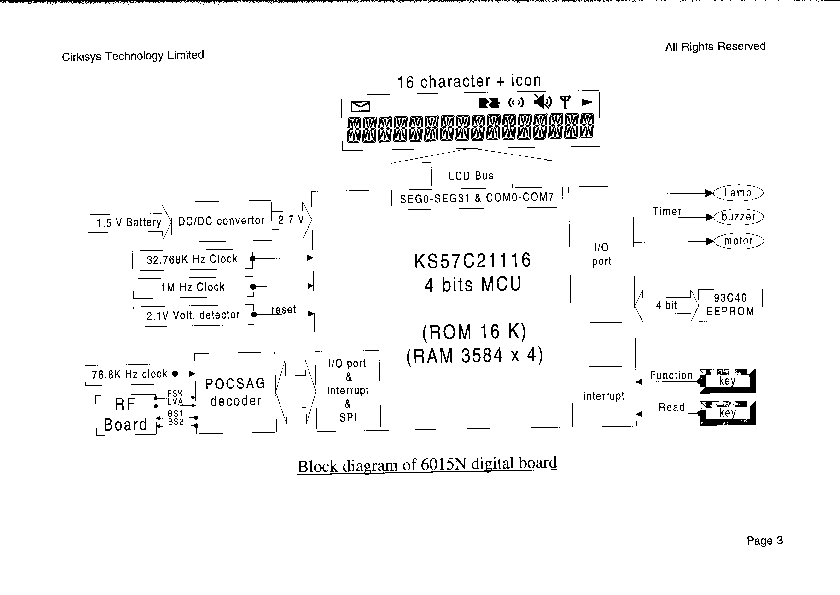

Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantVTech Connect Limited
Equipment ClassAlpha-numeric pager
Product CodeALPHA14002
Application IDQVcfvznFmUnL42iTO5xwJA==
Application PurposeOriginal Equipment
Application Date1999-06-07
Frequency Range450-458 MHz
FRN0021823992
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Assistant Manager / ETL SEMKO
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-05-10
Available1999-06-07
Created1999-05-03
Modified1999-05-03
Pages2
File TypeAdobe Acrobat PDF
File Size180420
File SHA-25679cd4de2680c13bd60f2253a108bc0f6ec1bef9fcb713793e59d8a07d2a355d9
PDF Metadata ProducerPhotoshop PDF Plug-in 1.0 Photoshop PDF Plug-in 1.0
FCC.gov SourcesFCC.gov 36499
