D2300 FIREFLY D2300 Block Diagram - FCC ID ODYD2300

FCC ID ODYD2300

block diagram

FIREFLY D2300

by Datamatic, Ltd

Document preview loads when visible.

Document Details

FCC IDODYD2300
Document ID427531
Document TypeBlock Diagram

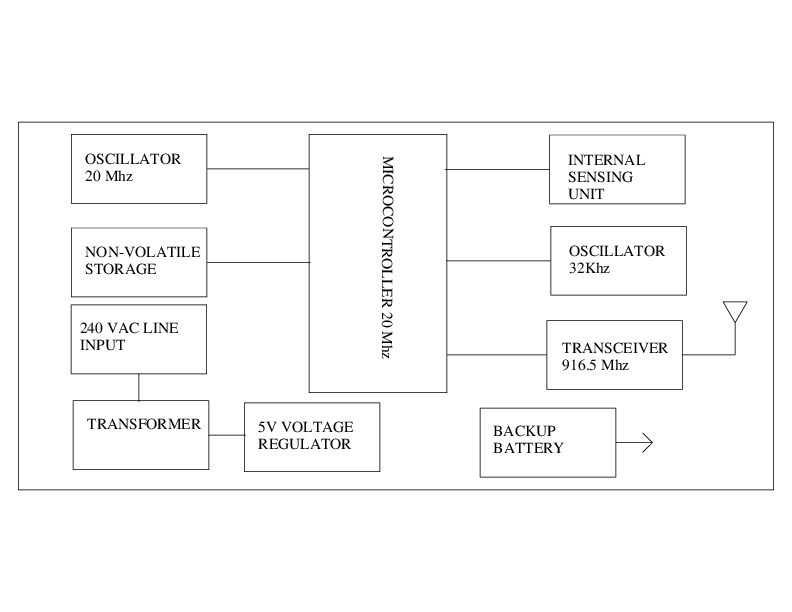

Descriptionblock diagram
ApplicantDatamatic, Ltd
Equipment ClassFIREFLY D2300
Product CodeD2300
Application IDCL6WjsJVdwOvGsRLFmQDKw==
Application PurposeOriginal Equipment
Application Date2004-06-03
Frequency Range916.2-916.8 MHz
FRN0007039738
Test FirmCarl T. Jones Corporation
Certified ByPHILIP MASTERS CFO
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-06-03
Available2004-06-03
Created2004-05-28
Modified2004-05-28
Pages1
File TypeAdobe Acrobat PDF
File Size3578
File SHA-256b95ce118afa53d05d2249c3d30d57a0569a65839700e82198fd88fa69c2f6a2a
PDF Metadata ProducerAcrobat Distiller 4.05 for Windows
FCC.gov SourcesFCC.gov 427531
