QTIMIDSMXMT MXMT – MIDS Single... - FCC ID OGE-QTIMIDSMXMT

FCC ID OGE-QTIMIDSMXMT

blk diagram

MXMT – MIDS Single Channel Fixed Frequency Relay

by Qual-Tron, Inc.

Document preview loads when visible.

Document Details

FCC IDOGE-QTIMIDSMXMT
Document ID760879
Document TypeBlock Diagram
Descriptionblk diagram

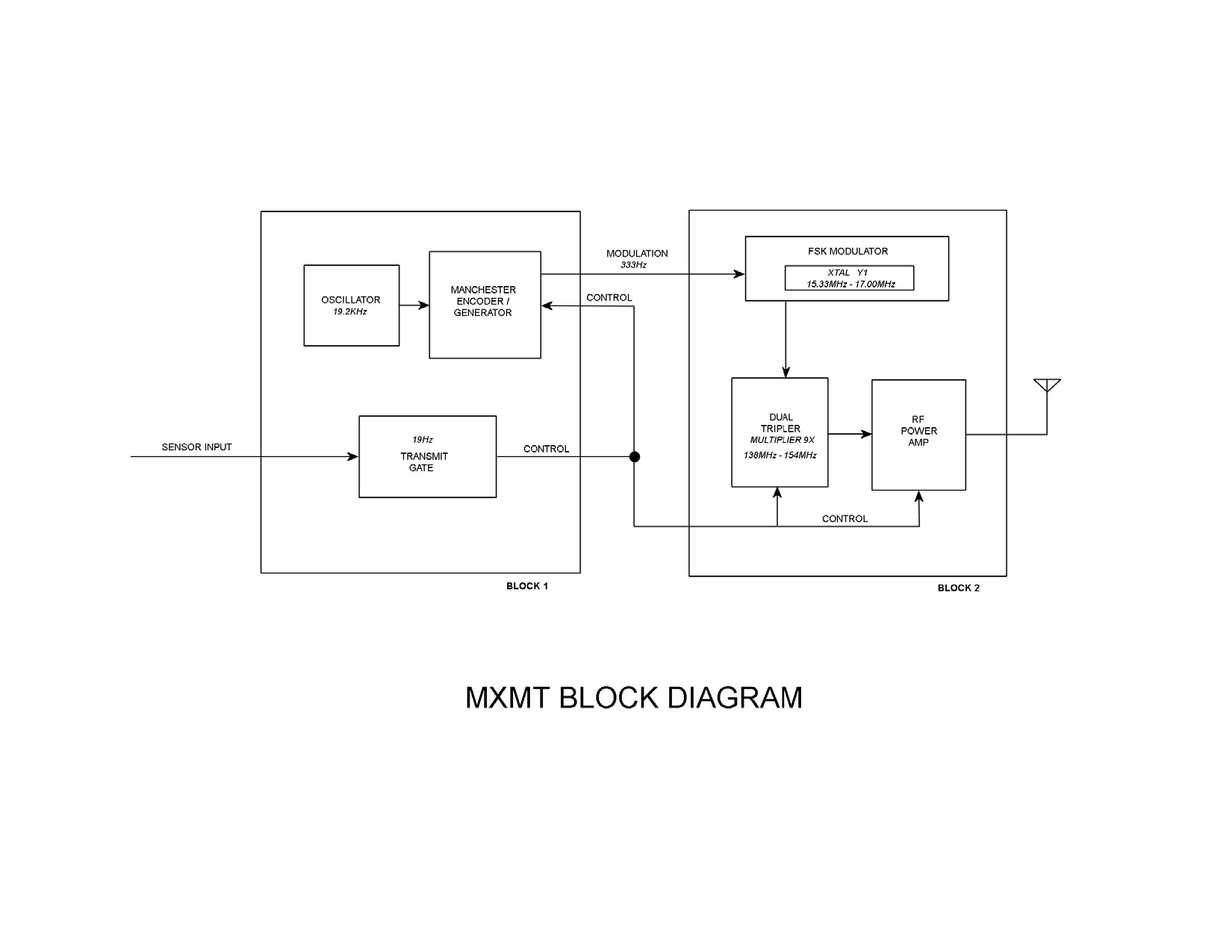

Document TitleMXMTblockdiagram
ApplicantQual-Tron, Inc.
Equipment ClassMXMT – MIDS Single Channel Fixed Frequency Relay
Product CodeQTIMIDSMXMT
Application IDrsMl4o9mBap0cOQeY/QjAw==
Application PurposeOriginal Equipment
Application Date2007-02-20
Frequency Range138-174 MHz
FRN0016122426
Test FirmMET Laboratories, Inc.
Certified ByJennifer Sanchez TCB Administrator
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2007-02-20
Available2007-02-20
Created2006-09-01
Modified2006-09-01
Pages1
File TypeAdobe Acrobat PDF
File Size49507
File SHA-2569ff65f1ccb777ec9b017ca8a2eb8b20dddd40cec2799dde12713269d7a103d06
PDF Metadata Authoragibbons
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows)
FCC.gov SourcesFCC.gov 760879
