JSE99 Test Setup Photos - FCC ID OGPJSE99
FCC ID OGPJSE99

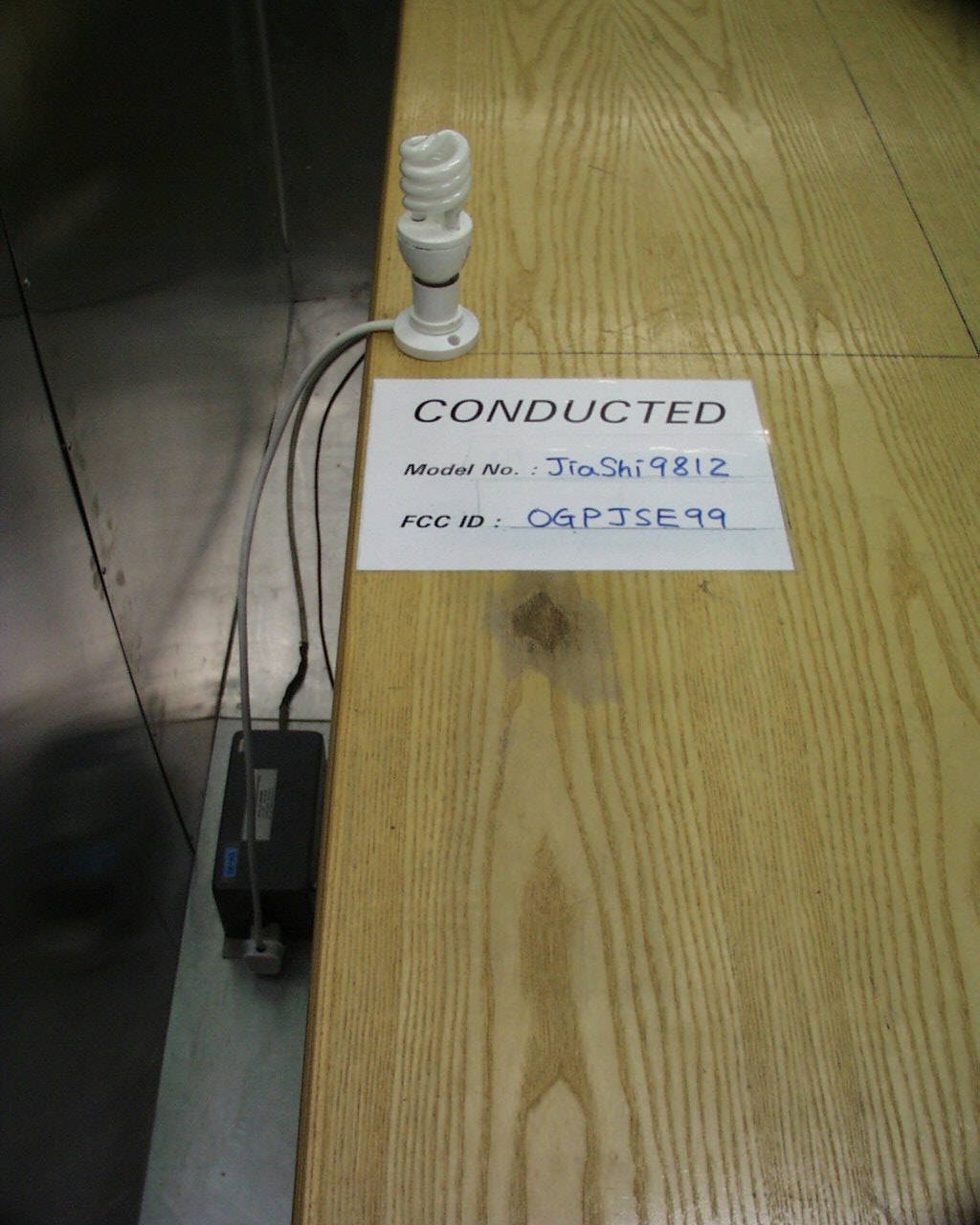

conducted emission
JSE99
Document Details
| FCC ID | OGPJSE99 |
|---|---|
| Document ID | 38825 |
| Document Type | Test Setup Photos |
| Description | conducted emission |
| Applicant | Shenzhen Jiashi Electronics Co. Ltd. |
| Equipment Class | JSE99 |
| Product Code | JSE99 |
| Application ID | X3SizglGxz1e9MRsPsK+Iw== |
| Application Purpose | Original Equipment |
| Application Date | 1999-06-29 |
| Frequency Range | 0.02 MHz |
| FRN | 9999999999 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | C. K. LAM TECHNICAL MANAGER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-05-25 |
| Available | 1999-06-29 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 139266 |
| File SHA-256 | 2d5ebc0cdef895e95b340e9b0dfd47aaa2b4f7e1aaf7a6874e120db723952082 |
| FCC.gov Sources | FCC.gov 38825, FCC.gov 38824, FCC.gov 38823 |
