FBDAPCSA10W MW-FBDA-PCS-A-10W... - FCC ID OIWFBDAPCSA10W
FCC ID OIWFBDAPCSA10W

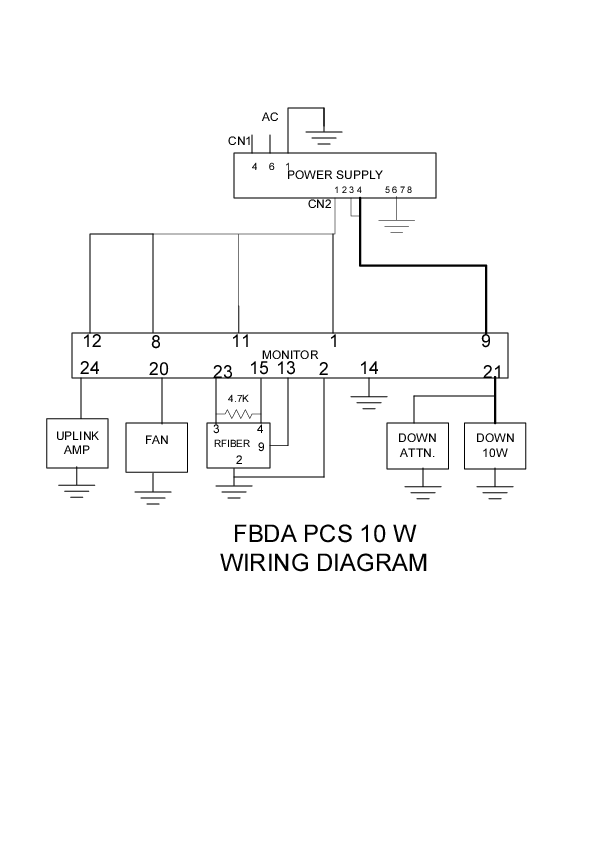

Wiring diagram
MW-FBDA-PCS-A-10W Bi-directional amplifier
Document preview loads when visible.
Document Details
| FCC ID | OIWFBDAPCSA10W |
|---|---|
| Document ID | 163427 |
| Document Type | Operational Description |
| Description | Wiring diagram |
| Applicant | Dekolink Wireless Ltd |
| Equipment Class | MW-FBDA-PCS-A-10W Bi-directional amplifier |
| Product Code | FBDAPCSA10W |
| Application ID | 6cfb+ChFHkDTjO6dR3C7mQ== |
| Application Purpose | Original Equipment |
| Application Date | 2001-10-01 |
| Frequency Range | 1930-1945 MHz |
| FRN | 0009032368 |
| Test Firm | Nemko Canada Inc. |
| Certified By | David Levy Product Manager, Cellular Communication Group |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2001-08-07 |
| Available | 2001-10-01 |
| Created | 2001-03-27 |
| Modified | 2001-03-27 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 11740 |
| File SHA-256 | 4f7ca7d2c4e177ddc3341634086cec77b3af17d7582bf7de76a334b4ab44a2f1 |
| PDF Metadata Producer | Acrobat Distiller 4.05 for Windows |
| FCC.gov Sources | FCC.gov 163427 |
