1061 External Photos - FCC ID OIZ1061

FCC ID OIZ1061

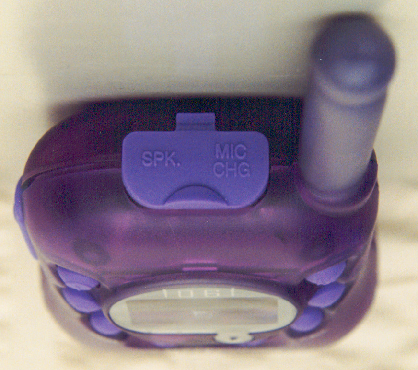

EXTERNAL PHOTO TOP VIEW

1061

by Wooil Telcom Co Ltd.

Document preview loads when visible.

Document Details

FCC IDOIZ1061
Document ID108536
Document TypeExternal Photos
DescriptionEXTERNAL PHOTO TOP VIEW
ApplicantWooil Telcom Co Ltd.
Equipment Class1061
Product Code1061
Application IDOeAl0/SvXU6bzxRM17IQ9g==
Application PurposeOriginal Equipment
Application Date2000-09-06
Frequency Range462.563-467.713 MHz
Test FirmTimco Engineering, Inc.
Certified ByS.S. Sanders Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-07-10
Available2000-09-06
Created2000-07-06
Modified2000-07-06
Pages1
File TypeAdobe Acrobat PDF
File Size362928
File SHA-2566068be0fce8ddb635497556df253d15691deb3333fe65fc2a239dc7c9ed3d0f2
PDF Metadata ProducerAdobe Photoshop 5.0 Adobe Photoshop for Windows
FCC.gov SourcesFCC.gov 108536
