98045001 Schematics - FCC ID OJ8-98045001
FCC ID OJ8-98045001

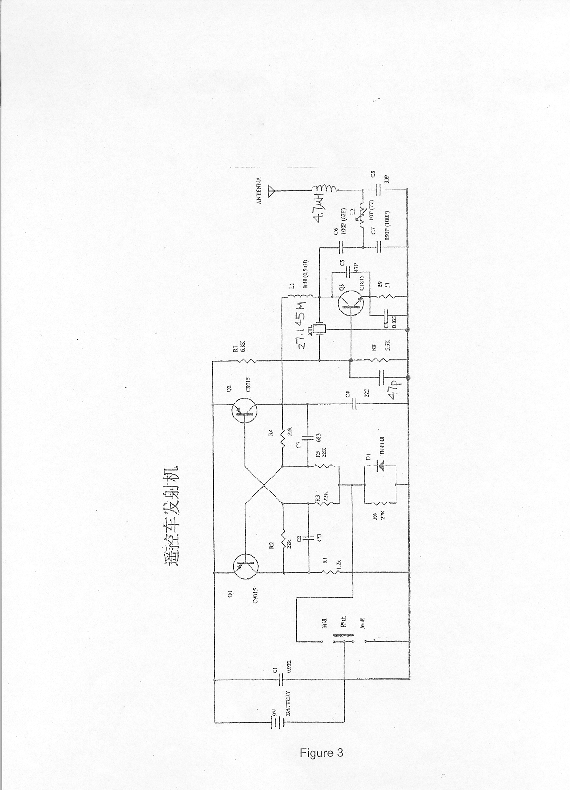

CIRCUIT DIAGRAM
98045001
Document preview loads when visible.
Document Details
| FCC ID | OJ8-98045001 |
|---|---|
| Document ID | 60079 |
| Document Type | Schematics |
| Description | CIRCUIT DIAGRAM |
| Applicant | Intex Syndicate Ltd. |
| Equipment Class | 98045001 |
| Product Code | 98045001 |
| Application ID | 6RnFXnhzhtWNie8zq4zqpw== |
| Application Purpose | Original Equipment |
| Application Date | 1999-10-27 |
| Frequency Range | 27.145 MHz |
| FRN | 0025852146 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | C. K. LAM TECHNICAL MANAGER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-09-21 |
| Available | 1999-10-27 |
| Created | 1999-09-21 |
| Modified | 1999-09-21 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 1059580 |
| File SHA-256 | 3ed660836f27af3caf8eec04db4a362bade0a5d52de66e89a9d6dfbde5dc4b1f |
| PDF Metadata Producer | Acrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows |
| FCC.gov Sources | FCC.gov 60079 |
