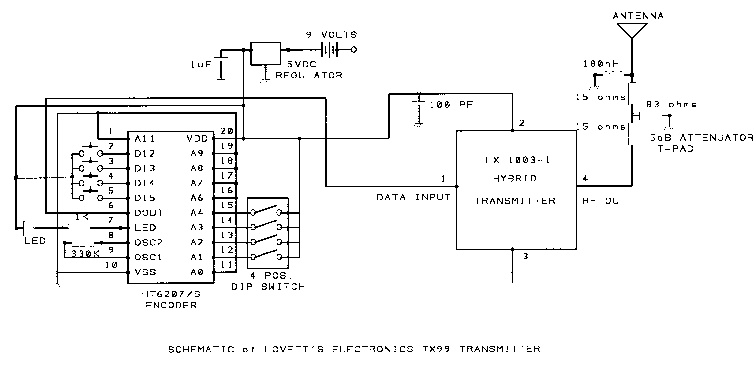

TX99 Schematics - FCC ID OKDTX99

FCC ID OKDTX99

schematic

TX99

by Lovett's Electronics

Document preview loads when visible.

Document Details

FCC IDOKDTX99
Document ID37153
Document TypeSchematics
Descriptionschematic
ApplicantLovett's Electronics
Equipment ClassTX99
Product CodeTX99
Application IDZf7dERcLbM/RhQF7edRxtA==
Application PurposeOriginal Equipment
Application Date1999-06-15
Frequency Range417.8-418.2 MHz
FRN9999999999
Test FirmSmith Electronics, Inc.
Certified ByHenry Lovett
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-05-12
Available1999-06-15
Created1999-05-11
Modified1999-05-11
Pages1
File TypeAdobe Acrobat PDF
File Size63457
File SHA-256334717714eb5ca92f61ba647440fd0efd5d793ecd806653322717063a8f9d7f6
PDF Metadata ProducerAcrobat 3.0 Scan Plug-in Acrobat 3.0 Scan Plug-in
FCC.gov SourcesFCC.gov 37153
