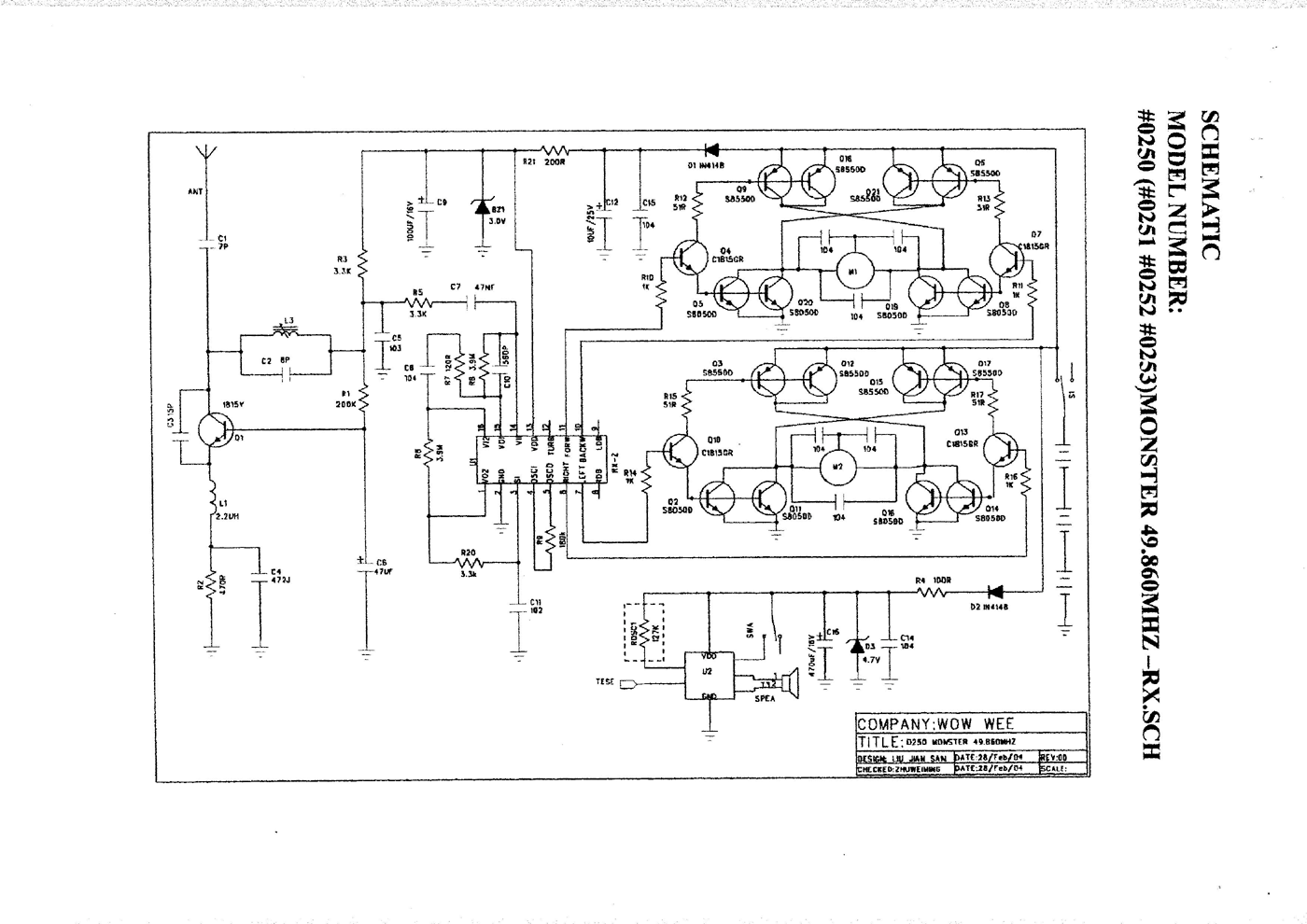

0250B 49.82-49.90 MHz Wireless R/CRX Schematics - FCC ID OKP0250B

FCC ID OKP0250B

Schematics

49.82-49.90 MHz Wireless R/CRX

by WowWee Group Limited

Document preview loads when visible.

Document Details

FCC IDOKP0250B
Document ID411683
Document TypeSchematics
DescriptionSchematics
ApplicantWowWee Group Limited
Equipment Class49.82-49.90 MHz Wireless R/CRX
Product Code0250B
Application IDNQ8NQCTW1e0PFu+Vsg2ThQ==
Application PurposeOriginal Equipment
Application Date2004-04-06
Frequency Range49.82-49.9 MHz
FRN0006657621
Test FirmThru Lab & Engineering
Certified ByDickson Fung Senior Quality Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-04-06
Available2004-04-06
Created2004-03-17
Modified2004-03-18
Pages1
File TypeAdobe Acrobat PDF
File Size231859
File SHA-256c2a516dabfb5a98cdb5b332a5bfab2e4c20be644409a2c86c5324e36893e16a2
PDF Metadata ProducerAdobe Photoshop Elements 2.0 Adobe Photoshop Elements for Windows
FCC.gov SourcesFCC.gov 411683
