HD950 900 MHz DSS Cordless Telephone Test Report - FCC ID ON7HD-950

FCC ID ON7HD-950

Radiated Data

900 MHz DSS Cordless Telephone

by HC Telecom Co Ltd

Document preview loads when visible.

Document Details

FCC IDON7HD-950
Document ID64182
Document TypeTest Report

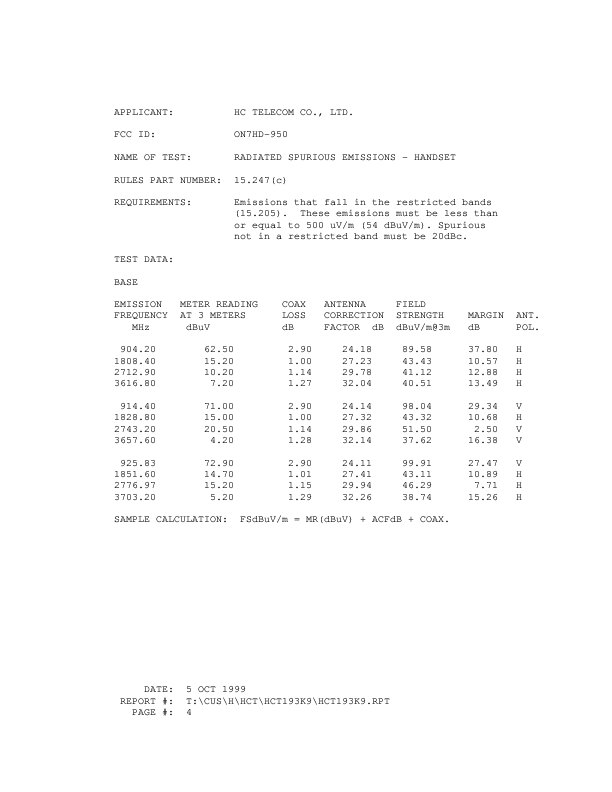

DescriptionRadiated Data
ApplicantHC Telecom Co Ltd
Equipment Class900 MHz DSS Cordless Telephone
Product CodeHD950
Application IDtFOxtznKgrncISkhadYI+w==
Application PurposeOriginal Equipment
Application Date1999-10-19
Frequency Range904.2-925.83 MHz
FRN0010447613
Test FirmTimco Engineering, Inc.
Certified ByS. S. Sanders Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-10-15
Available1999-10-19
Created2001-05-22
Modified2001-05-22
Pages4
File TypeAdobe Acrobat PDF
File Size7708
File SHA-25696b40a145af8a1a1ec1306d40a79d86c7e6da4d9d5f06dfc9d222bc0a15793a8
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 64182
