FCC ID OPDAWM968BK
Mobile audio system wall mount unit
by Sounding Audio Industrial Ltd.
Grantee Code: OPD Product Code: AWM968BK
Latest application date: 2016-06-14
Device Images
FCC ID Device Details
| FCC ID | OPDAWM968BK |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | OPD |
| Product Code | AWM968BK |
| Applicant Business | Sounding Audio Industrial Ltd. |
| Related Domains |  cn.eaglehk.com  audix.com.cn |
| Equipment Class | Mobile audio system wall mount unit |
| Test Firm | Audix Technology (Shenzhen) Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-06-14 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| awm968_owners_manual(With FCC warning)rev02 | Users Manual | 2016-06-14 | PDF 3.5 MB |

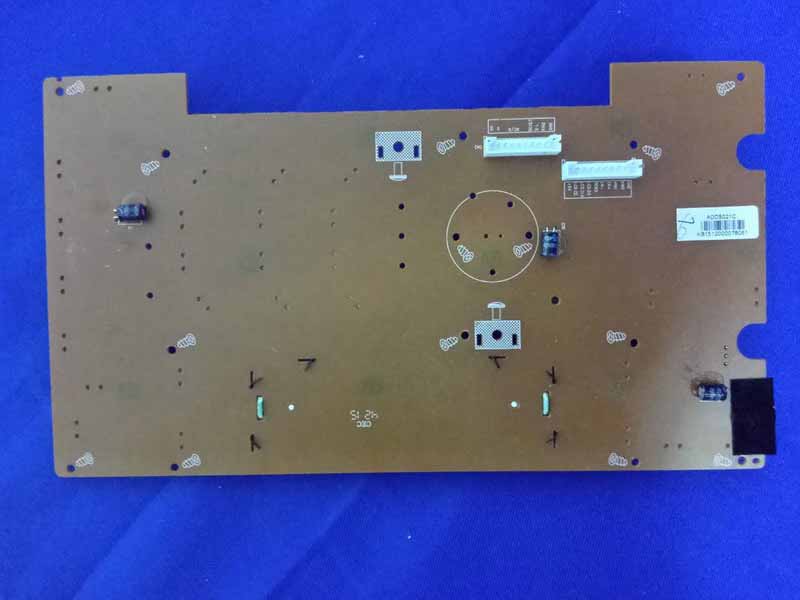

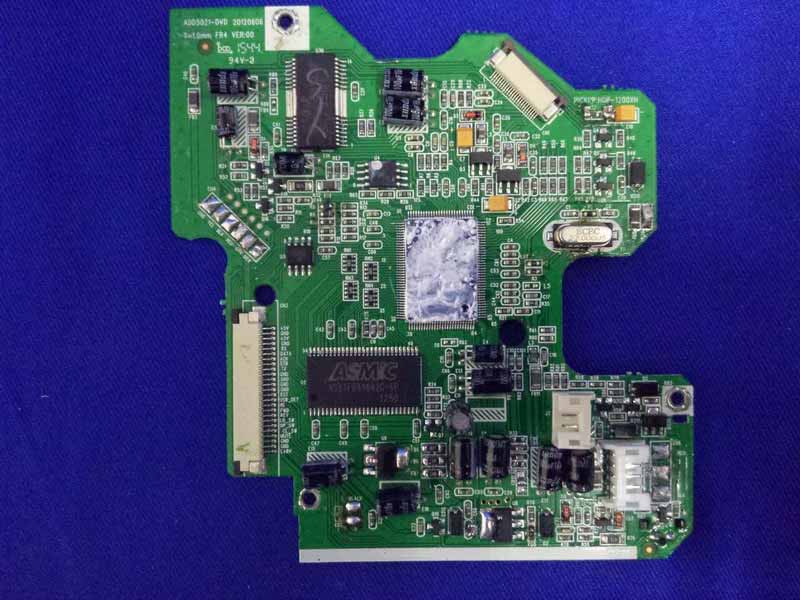

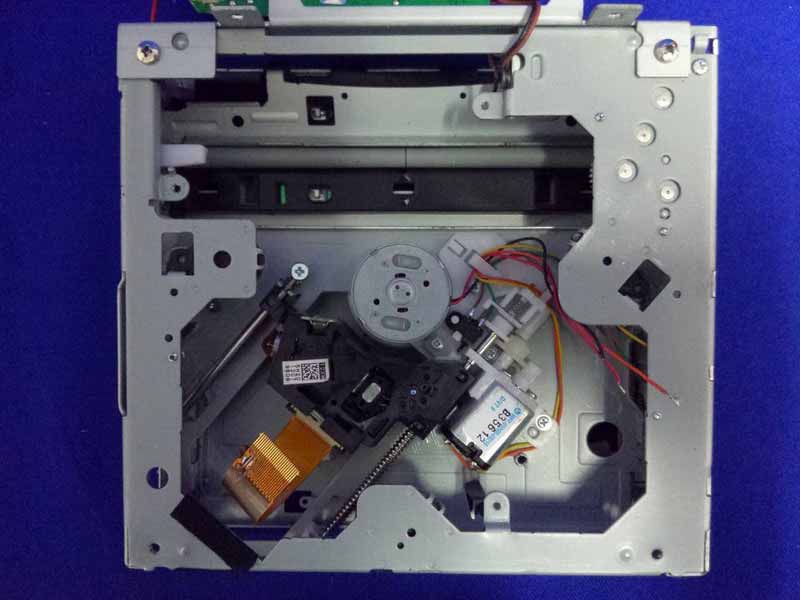

| AWM968- Int photos rev02 | Internal Photos | 2016-06-14 | PDF 837.2 KB |
| AWM968- Ext photos rev02 | External Photos | 2016-06-14 | PDF 237.6 KB |
| AWM968 model label - New rev3 | ID Label/Location Info | 2016-06-14 | PDF 867.7 KB |
| AWM968-Test Setup | Test Setup Photos | 2016-06-14 | PDF 159.7 KB |
| AWM968- FCC ID test report rev02 | Test Report | 2016-06-14 | PDF 5.6 MB |
| AWM968 Confidentiality Letter | Cover Letter(s) | 2016-06-14 | PDF 310.9 KB |
| AWM968 agency authorization letter | Cover Letter(s) | 2016-06-14 | PDF 348.5 KB |
| FCC RF exposure statement_Rev1 | RF Exposure Info | 2016-06-14 | PDF 173.9 KB |
| AWM968 Block diagram Metadata only | Block Diagram | PDF 44.8 KB | |
| DCBM30006 module Metadata only | Block Diagram | PDF 280.8 KB | |
| AWM968 SCH Metadata only | Schematics | PDF 1.2 MB | |
| Small module Circuit Metadata only | Schematics | PDF 563.3 KB | |
| AWM968 Description Rev01 Metadata only | Operational Description | PDF 232.9 KB |
Application Information
| Application ID | MYLZ8UAHicwr3d+GosVAOA== |
|---|---|
| Final Action Date | 2016-06-14 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022368559 |
| Model | AWM968BK |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Mobile audio system wall mount unit |
| Responsible Party | Steven He, Project Manager, steven_he@cn.eaglehk.com , +86-769-82207988 |
| Agent | AUDIX Technology (Shenzhen) Co., Ltd., Sunny_lu@audix.com.cn , 86-755-26639497 |
| Technical Contact | AUDIX Technology (Shenzhen) Co., Ltd., sunny_lu@audix.com.cn , 86-755-26639497 |
| Non-Technical Contact | AUDIX Technology (Shenzhen) Co., Ltd., David_jin@audix.com.cn , 86-755-26639497 |
| Test Firm | Smart Tsai, Audix Technology (Shenzhen) Co., Ltd., sindy_song@audix.com.cn , 86-755-26639495 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output listed is conducted. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| MYLZ8UAHicwr3d+GosVAOA== | 2016-06-14 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2402-2480 MHz | 0.0007400 | 15C |
Grants
TCB Grant - Application MYLZ8UAHicwr3d+GosVAOA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 06/14/2016 Application Dated: 06/12/2016 |
| Sounding Audio Industrial Ltd. |
| Unit N, 7/F, Stage 2, Wah Fung Ind. Centre |
| 33-39 Kwai Fung Road |
| Kwai Chung, - Hong Kong |
| Attention: Steven He , Project Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | OPDAWM968BK |
| Name of Grantee: | Sounding Audio Industrial Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile audio system wall mount unit |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00074 |
| Power Output listed is conducted. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application MYLZ8UAHicwr3d+GosVAOA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Sounding Audio Industrial Ltd. Unit N, 7/F, Stage 2, Wah Fung Ind. Centre 33-39 Kwai Fung Road Kwai Chung, - Hong Kong |
Date of Grant: 06/14/2016 Application Dated: 06/12/2016 |
| Attention: Steven He , Project Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | OPDAWM968BK |
| Name of Grantee: | Sounding Audio Industrial Ltd. |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Mobile audio system wall mount unit |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00074 |
| Power Output listed is conducted. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
