IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.

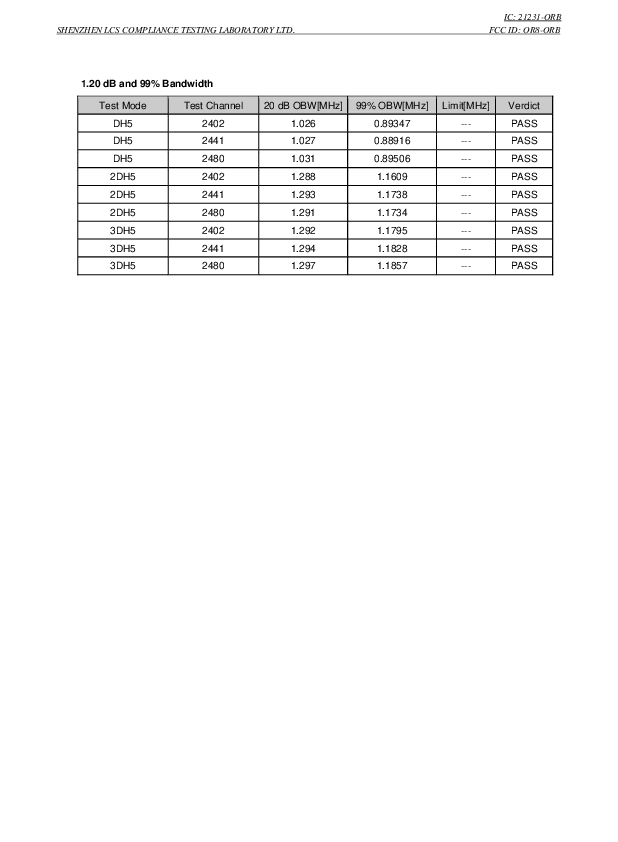

1.20 dB and 99% Bandwidth
Test Mode
Test Channel
20 dB OBW[MHz]
99% OBW[MHz]
Limit[MHz]
Verdict
DH5
2402
1.026
0.89347
---
PASS
DH5
2441
1.027
0.88916
---
PASS
DH5
2480
1.031
0.89506
---
PASS
2DH5
2402
1.288
1.1609
---
PASS
2DH5
2441
1.293
1.1738
---
PASS
2DH5
2480
1.291
1.1734
---
PASS
3DH5
2402
1.292
1.1795
---
PASS
3DH5
2441
1.294
1.1828
---
PASS
3DH5
2480
1.297
1.1857
---
PASS
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
20 dB Bandwidth_DH5_2402
20 dB Bandwidth_DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
20 dB Bandwidth_DH5_2480
20 dB Bandwidth_2DH5_2402
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
20 dB Bandwidth_2DH5_2441
20 dB Bandwidth_2DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
20 dB Bandwidth_3DH5_2402
20 dB Bandwidth_3DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
20 dB Bandwidth_3DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
2.Occupied Bandwidth
Test Mode
Test Channel
OBW[MHz]
Limit[MHz]
Verdict
3.Conducted Peak Output Power
Test Mode
Test Channel
Power[dBm]
Limit[dBm]
Verdict
DH5
2402
2.162
30
PASS
DH5
2441
2.276
30
PASS
DH5
2480
2.370
30
PASS
2DH5
2402
1.327
21
PASS
2DH5
2441
1.589
21
PASS
2DH5
2480
1.698
21
PASS
3DH5
2402
1.499
21
PASS
3DH5
2441
1.792
21
PASS
3DH5
2480
1.868
21
PASS
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Conducted Peak Output Power_DH5_2402
Conducted Peak Output Power_DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Conducted Peak Output Power_DH5_2480
Conducted Peak Output Power_2DH5_2402
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Conducted Peak Output Power_2DH5_2441
Conducted Peak Output Power_2DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Conducted Peak Output Power_3DH5_2402
Conducted Peak Output Power_3DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Conducted Peak Output Power_3DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
4.Carrier Frequency Separation
Test Mode
Test Channel
Result[MHz]
Limit[MHz]
Verdict
DH5
2402
0.852
0.68
PASS
DH5
2441
0.68
PASS
DH5
2480
0.904
0.69
PASS
2DH5
2402
1.332
0.86
PASS
2DH5
2441
1.048
0.86
PASS
2DH5
2480
1.172
0.86
PASS
3DH5
2402
1.026
0.86
PASS
3DH5
2441
0.976
0.86
PASS
3DH5
2480
1.138
0.86
PASS
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Carrier Frequency Separation_DH5_2402
Carrier Frequency Separation_DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Carrier Frequency Separation_DH5_2480
Carrier Frequency Separation_2DH5_2402
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Carrier Frequency Separation_2DH5_2441
Carrier Frequency Separation_2DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Carrier Frequency Separation_3DH5_2402
Carrier Frequency Separation_3DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Carrier Frequency Separation_3DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
5.Dwell Time
Test
Mode
Test
Channel
Burst
Width[ms/hop/ch]
Total
Hops[hop*ch]
DH5
2402
2.87
106.7
0.306
0.4
PASS
DH5
2441
2.87
106.7
0.306
0.4
PASS
DH5
2480
2.87
106.7
0.306
0.4
PASS
2DH5
2402
2.88
106.7
0.307
0.4
PASS
2DH5
2441
2.88
106.7
0.307
0.4
PASS
2DH5
2480
2.88
106.7
0.307
0.4
PASS
3DH5
2402
2.88
106.7
0.307
0.4
PASS
3DH5
2441
2.88
106.7
0.307
0.4
PASS
3DH5
2480
2.88
106.7
0.307
0.4
PASS
Dwell Time[s] Limit[s]
Verdict
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Dwell Time_DH5_2402
Dwell Time_DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Dwell Time_DH5_2480
Dwell Time_2DH5_2402
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Dwell Time_2DH5_2441
Dwell Time_2DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Dwell Time_3DH5_2402
Dwell Time_3DH5_2441
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Dwell Time_3DH5_2480
IC: 21231-ORB
FCC ID: OR8-ORB
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
6.Hopping Channel Number
Test Mode
Test Channel
Number of Hopping Channel[N]
Limit[N] Verdict
DH5
2402
79
>=15
PASS
2DH5
2402
79
>=15
PASS
3DH5
2402
79
>=15
PASS
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Hopping Channel Number_DH5_2402
Hopping Channel Number_2DH5_2402
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Hopping Channel Number_3DH5_2402
IC: 21231-ORB
FCC ID: OR8-ORB
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
7.Band-edge for RF Conducted Emissions
Test
Mode
Test
Channel
Hopping
Carrier
Power[dBm]
Max. Spurious Level
[dBm]
DH5
2402
On
2.047
-53.410
-17.95
PASS
DH5
2402
Off
1.669
-53.275
-18.33
PASS
DH5
2480
On
2.136
-52.758
-17.86
PASS
DH5
2480
Off
2.020
-53.052
-17.98
PASS
2DH5
2402
On
0.498
-52.853
-19.5
PASS
2DH5
2402
Off
-2.700
-53.487
-22.7
PASS
2DH5
2480
On
0.909
-53.127
-19.09
PASS
2DH5
2480
Off
0.966
-52.835
-19.03
PASS
3DH5
2402
On
0.594
-52.432
-19.41
PASS
3DH5
2402
Off
-0.902
-53.523
-20.9
PASS
3DH5
2480
On
1.031
-52.472
-18.97
PASS
3DH5
2480
Off
0.717
-53.319
-19.28
PASS
Limit[dBm] Verdict
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Band-edge for RF Conducted Emissions_DH5_2402_Hopping On
Band-edge for RF Conducted Emissions_DH5_2402_Hopping Off
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Band-edge for RF Conducted Emissions_DH5_2480_Hopping On
Band-edge for RF Conducted Emissions_DH5_2480_Hopping Off
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Band-edge for RF Conducted Emissions_2DH5_2402_Hopping On
Band-edge for RF Conducted Emissions_2DH5_2402_Hopping Off
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Band-edge for RF Conducted Emissions_2DH5_2480_Hopping On
Band-edge for RF Conducted Emissions_2DH5_2480_Hopping Off
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Band-edge for RF Conducted Emissions_3DH5_2402_Hopping On
Band-edge for RF Conducted Emissions_3DH5_2402_Hopping Off
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
Band-edge for RF Conducted Emissions_3DH5_2480_Hopping On
Band-edge for RF Conducted Emissions_3DH5_2480_Hopping Off
IC: 21231-ORB
FCC ID: OR8-ORB
IC: 21231-ORB
FCC ID: OR8-ORB
SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD.
8.RF Conducted Spurious Emissions
Test Mode
Test
Channel
StartFre
[MHz]
StopFre
[MHz]
RBW
[kHz]
VBW
[kHz]
Pref[dBm]
Max.
Level
[dBm]
Limit
Verdict
[dBm]
DH5
2402
30
25000
100
300
1.884
-47.930
Download: ORB NFC DESKTOP SPEAKER Test Report FCC_Part15_247_DA_00-705_ReportTable Microlab Electronics Co.,Ltd.
Mirror Download [FCC.gov]ORB NFC DESKTOP SPEAKER Test Report FCC_Part15_247_DA_00-705_ReportTable Microlab Electronics Co.,Ltd.
Document ID3743325
Application IDsmv6iQt81dNrYXlSc6jVNQ==
Document DescriptionTest Data-Appendix A
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize275.77kB (3447137 bits)
Date Submitted2018-02-06 00:00:00
Date Available2018-02-06 00:00:00
Creation Date2018-02-06 12:58:41
Producing SoftwareMicrosoft® Word 2016
Document Lastmod2018-02-06 13:36:05
Document TitleFCC_Part15_247_DA_00-705_ReportTable
Document CreatorMicrosoft® Word 2016
Document Author: Mi, Wenping [CETECOM]

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Mi, Wenping [CETECOM]
Create Date                     : 2018:02:06 12:58:41+08:00
Modify Date                     : 2018:02:06 13:36:05+08:00
Language                        : en-US
XMP Toolkit                     : Adobe XMP Core 4.2.1-c041 52.342996, 2008/05/07-20:48:00
Format                          : application/pdf
Creator                         : Mi, Wenping [CETECOM]
Title                           : FCC_Part15_247_DA_00-705_ReportTable
Creator Tool                    : Microsoft® Word 2016
Metadata Date                   : 2018:02:06 13:36:05+08:00
Producer                        : Microsoft® Word 2016
Document ID                     : uuid:f63d310d-3018-41f6-82eb-2ba561944b93
Instance ID                     : uuid:83ad64bf-83ff-4129-b86c-51c9204692c6
Page Count                      : 51
