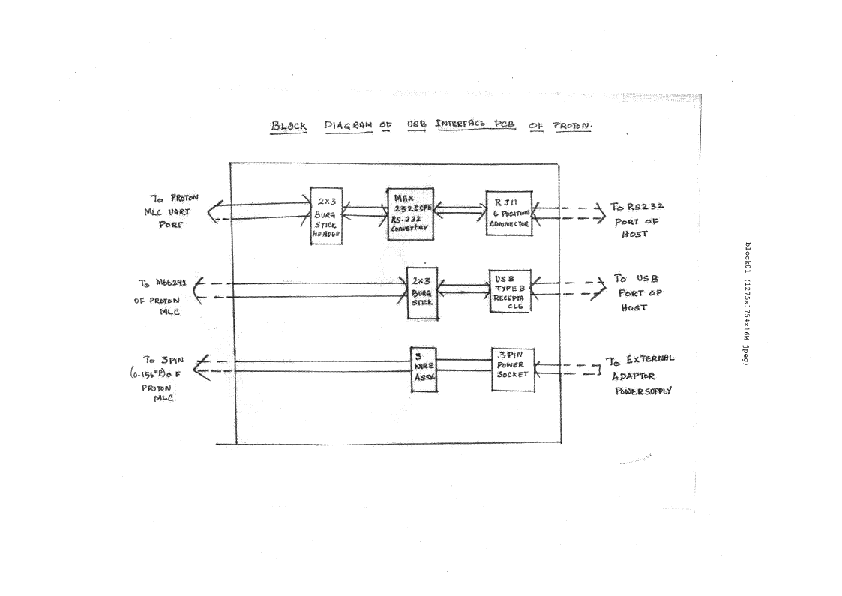

PROTON Printer Block Diagram - FCC ID OSCPROTON

FCC ID OSCPROTON

block diagram

Printer

by TVS Electronics Limited

Document preview loads when visible.

Document Details

FCC IDOSCPROTON
Document ID259707
Document TypeBlock Diagram
Descriptionblock diagram
Document Title掃描-8.PDF
ApplicantTVS Electronics Limited
Equipment ClassPrinter
Product CodePROTON
Application IDG209v3jrMOSvDDvpESP4Pw==
Application PurposeOriginal Equipment
Application Date2002-07-29
FRN0005817135
Test FirmTraining Research Co., Ltd.
Certified ByR. S. Babu Senior Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-07-30
Available2002-07-29
Created2002-07-11
Modified2002-07-11
Pages1
File TypeAdobe Acrobat PDF
File Size44111
File SHA-256e9cf8b703cbb3ca015fbfb9ff7920ff2c201adcb6bca87dbdcbb6b558ddb9296
PDF Metadata Authorivy
PDF Metadata ProducerAcrobat PDFWriter 4.0 for Windows ivy
FCC.gov SourcesFCC.gov 259707
