74045T27 MXS RC Asst. #3 - ONeal 27MHz... - FCC ID OTA74045T27

FCC ID OTA74045T27

block diagram

MXS RC Asst. #3 - ONeal 27MHz

by Jakks Pacific (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDOTA74045T27
Document ID1512301

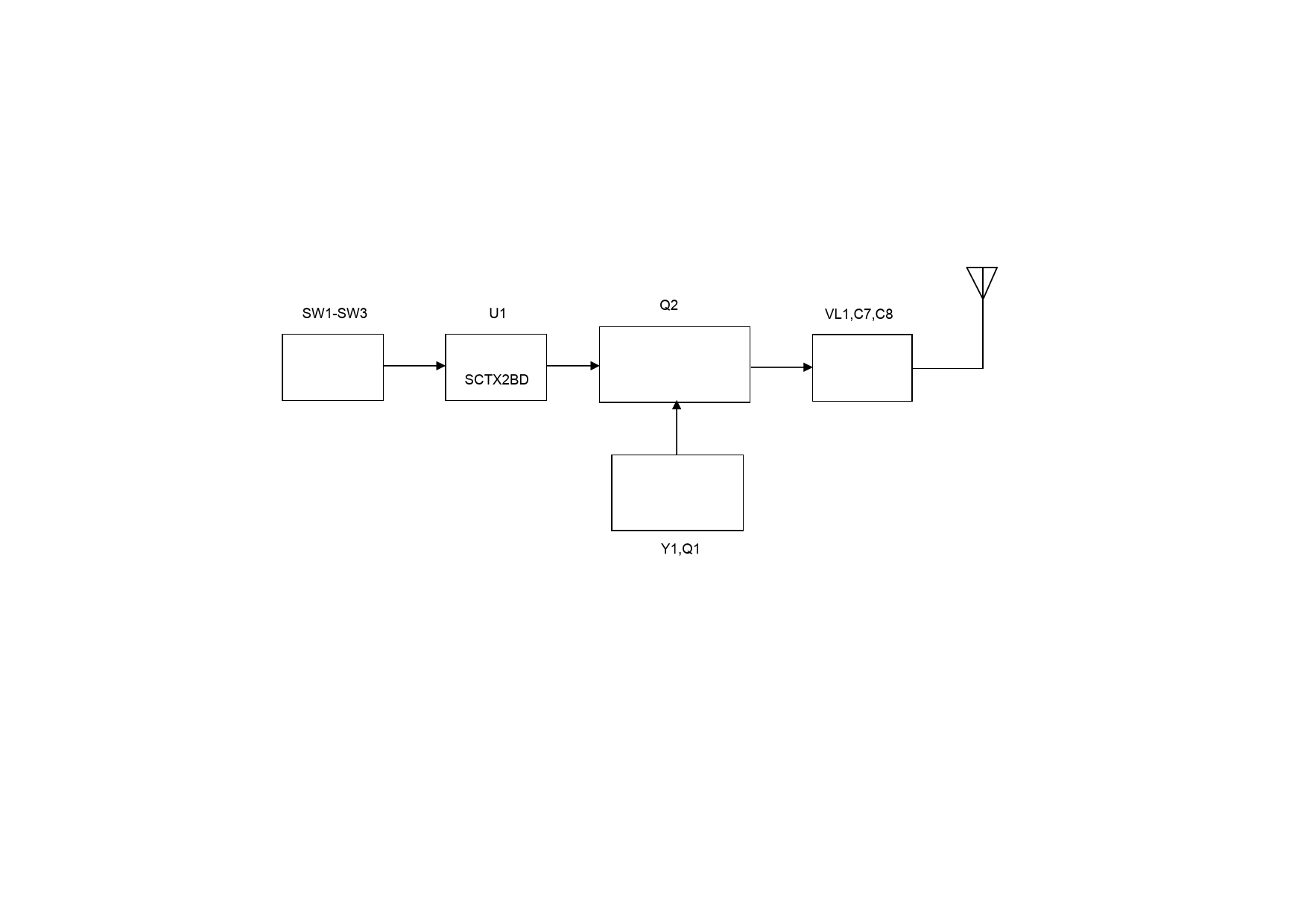

Document TypeBlock Diagram
Descriptionblock diagram
Document Titleblock
ApplicantJakks Pacific (HK) Ltd.
Equipment ClassMXS RC Asst. #3 - ONeal 27MHz
Product Code74045T27
Application IDrdwgFT3YoAYTo+0k52z2lQ==
Application PurposeOriginal Equipment
Application Date2011-07-28
Frequency Range27.145 MHz
FRN0014191258
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2011-07-28
Available2011-07-28
Created2011-06-07
Modified2011-07-13
Pages1
File TypeAdobe Acrobat PDF
File Size259498
File SHA-256be7b66dbb08f74fcccbd0058d0fe6864c18b90de29ef01ff91be5829bdcbf821
PDF Metadata Authorandy.yan
PDF Metadata CreatorPDFCreator Version 0.9.9
PDF Metadata ProducerGPL Ghostscript 8.70
FCC.gov SourcesFCC.gov 1512301
