850122027MTX 1/16 R/C Big Foot... - FCC ID OTM-8501220-27MTX

FCC ID OTM-8501220-27MTX

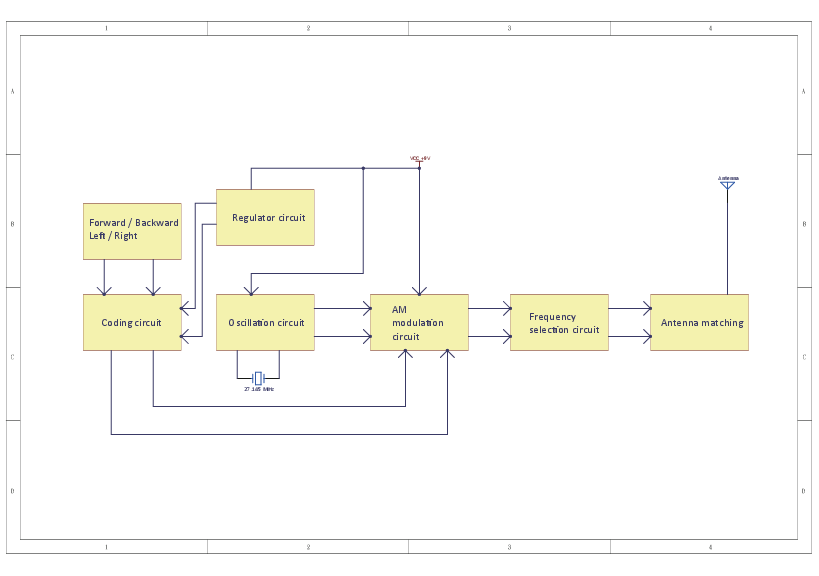

Block Diagram

1/16 R/C Big Foot Off-Road Truck

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-8501220-27MTX
Document ID4842969
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment Class1/16 R/C Big Foot Off-Road Truck
Product Code850122027MTX
Application ID+ZdT6OflZg8RfG6VHBriRg==
Application PurposeOriginal Equipment
Application Date2020-08-05
Frequency Range27.145 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Senior Lead Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2020-08-05
Available2020-08-05
Created2015-04-16
Modified2018-07-20
Pages1
File TypeAdobe Acrobat PDF
File Size180498
File SHA-256db8ff028bfc879d33f3a515e576d546e01c7a1a08083d2fc7c389e11003f3db4
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerWindows 9x/NT/2000/XP User llPDFLib 3.x
FCC.gov SourcesFCC.gov 4842969
