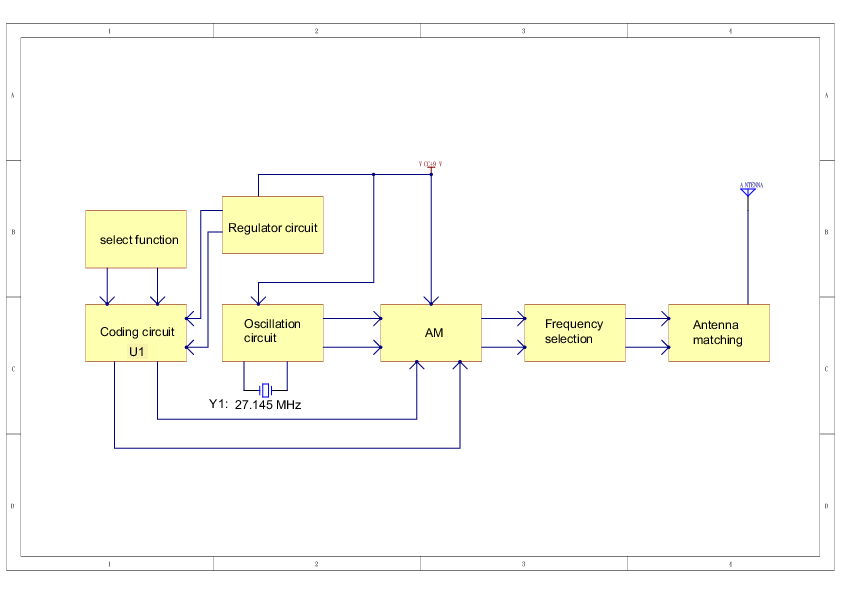

850311727MTX 1/16 RC Cars Block Diagram - FCC ID OTM-8503117-27MTX

FCC ID OTM-8503117-27MTX

Block Diagram

1/16 RC Cars

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-8503117-27MTX
Document ID3634716
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment Class1/16 RC Cars
Product Code850311727MTX
Application ID9mPlImKramakAktMWTTDEg==
Application PurposeOriginal Equipment
Application Date2017-11-10
Frequency Range27.145 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2017-11-10
Available2017-11-10
Created2017-11-01
Modified2017-11-01
Pages1
File TypeAdobe Acrobat PDF
File Size34714
File SHA-256d397ff6d5980e7d4086f6aa6bc195cf1f4fa883acc94872192b2c1303f29de50
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerWindows 9x/NT/2000/XP User Acrobat Distiller 8.3.1 (Windows)
FCC.gov SourcesFCC.gov 3634716
