844712024GTX 1/6 R/C Ducati Rider... - FCC ID OTM-8447120-24GTX

FCC ID OTM-8447120-24GTX

Block Diagram

1/6 R/C Ducati Rider

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-8447120-24GTX
Document ID4907816
Document TypeBlock Diagram
DescriptionBlock Diagram

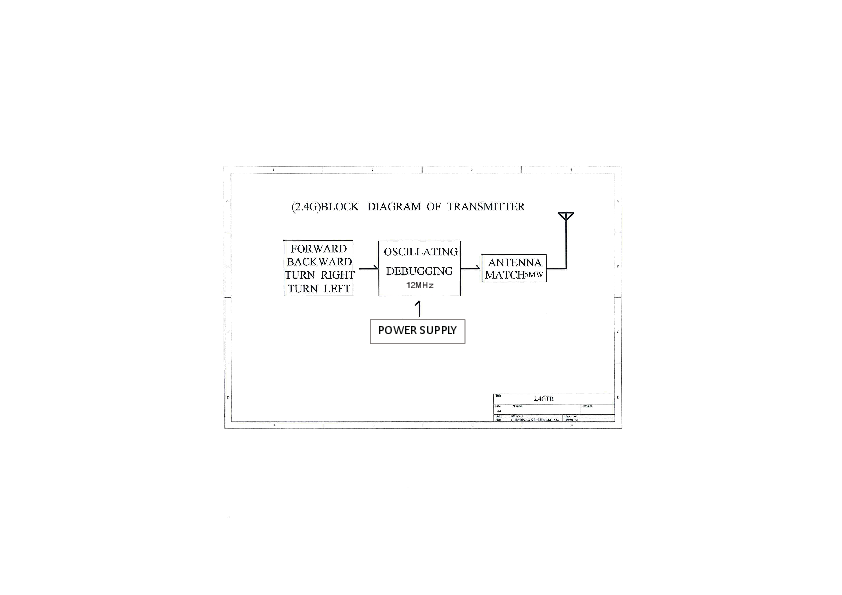

Document Title2.4G TX BD2
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment Class1/6 R/C Ducati Rider
Product Code844712024GTX
Application IDKnafUQpg3NYGUkuBuOOdTA==
Application PurposeOriginal Equipment
Application Date2020-09-16
Frequency Range2410-2475 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2020-09-16
Available2020-09-16
Created2016-02-15
Modified2019-06-06
Pages1
File TypeAdobe Acrobat PDF
File Size286178
File SHA-256ba6d7cdc7e05e1a64659a1ba6fca4ece53e840e6e78d93f89148746122ae7660
PDF Metadata Authorfylee
PDF Metadata ProducerPDFCreator 2.5.2.5233 PDFCreator 2.5.2.5233
FCC.gov SourcesFCC.gov 4907816

Related FCC Exhibits

DocumentTypeAvailableFile
User ManualUsers Manual2020-09-16PDF 1.8 MB
Internal PhotosInternal Photos2020-09-16PDF 354.4 KB
External PhotosExternal Photos2020-09-16PDF 150.9 KB
Label Artwork and LocationID Label/Location Info2020-09-16PDF 84.9 KB
Block DiagramBlock Diagram2020-09-16PDF 279.5 KB
Circuit DiagramSchematics2020-09-16PDF 51.9 KB
Technical DescriptionOperational Description2020-09-16PDF 38.8 KB
Radiated EmissionTest Setup Photos2020-09-16PDF 115.4 KB
Test ReportTest Report2020-09-16PDF 390 KB
Letter of AgencyCover Letter(s)2020-09-16PDF 88.9 KB
Analysis ReportRF Exposure Info2020-09-16PDF 42 KB
