845511824GRX R/C Max Drive Schematics - FCC ID OTM-8455118-24GRX

FCC ID OTM-8455118-24GRX

Circuit

R/C Max Drive

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-8455118-24GRX
Document ID3976831
Document TypeSchematics

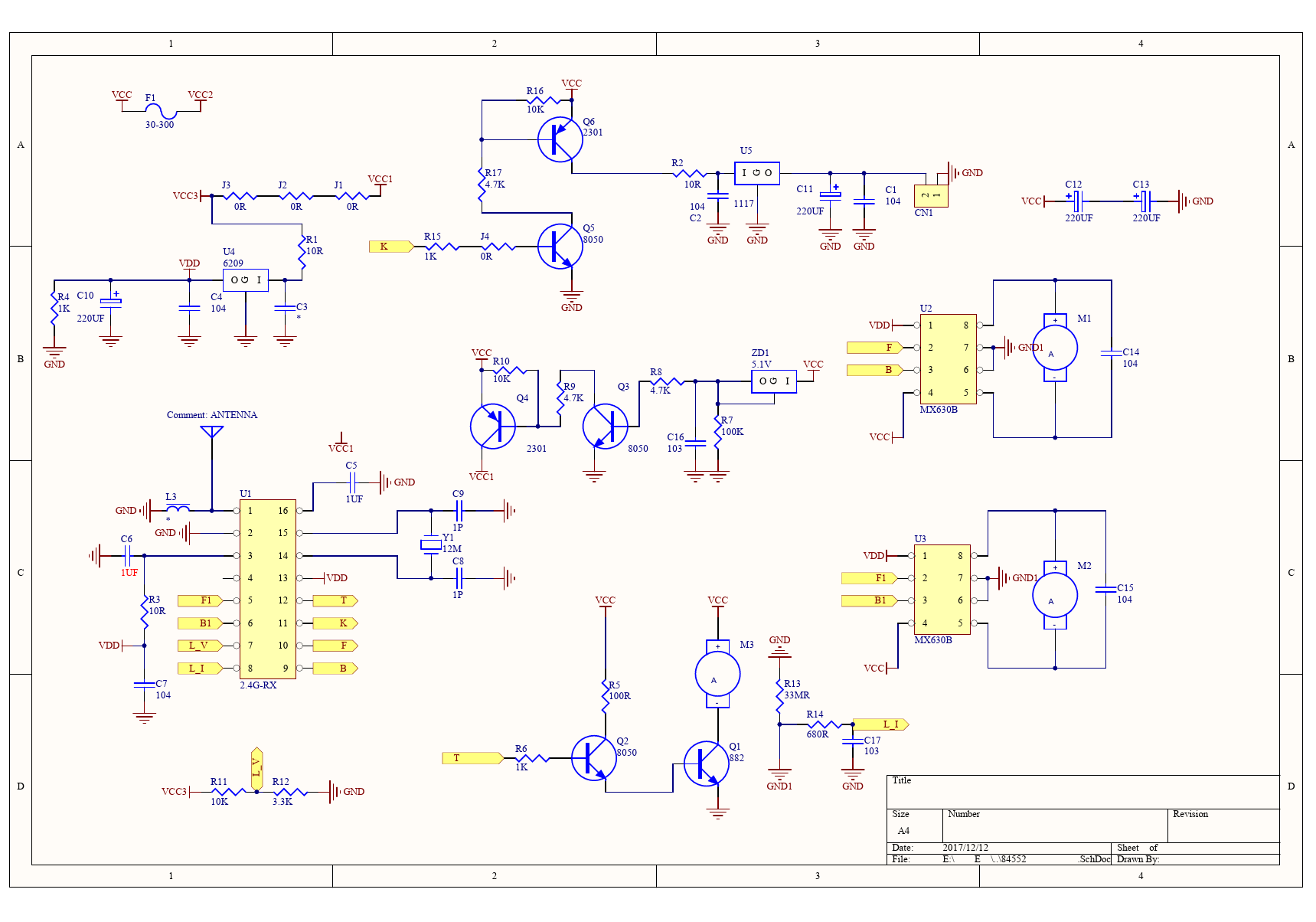

DescriptionCircuit
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment ClassR/C Max Drive
Product Code845511824GRX
Application IDiRWaU2HBoBW4ka48ZIng9w==
Application PurposeOriginal Equipment
Application Date2018-08-24
Frequency Range2412-2462 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2018-08-24
Available2018-08-24
Created2018-08-24
Modified2018-08-24
Pages3
File TypeAdobe Acrobat PDF
File Size215765
File SHA-2564efe2ee6960a198c3d7d8bac94880c3a8b6992861665875c08211d3d56dd7dfd
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerWindows 9x/NT/2000/XP User Adobe Acrobat 10.0.0
FCC.gov SourcesFCC.gov 3976831
