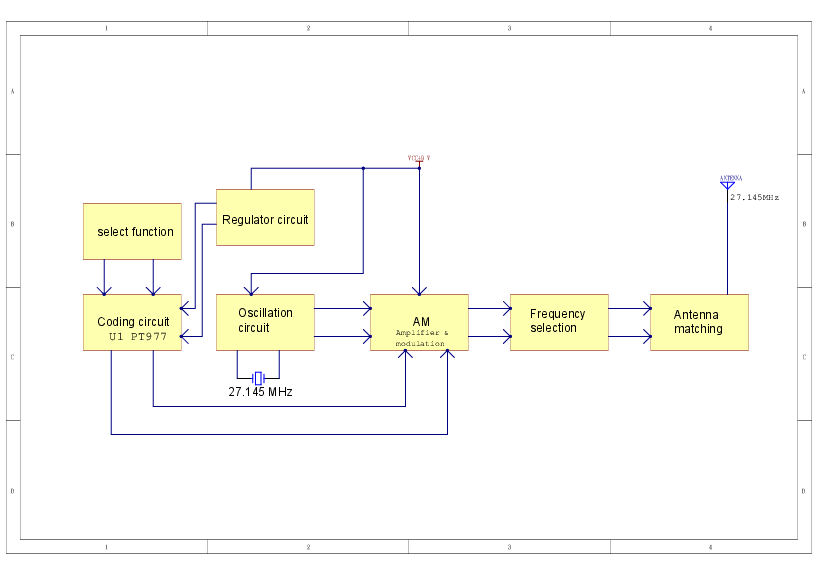

8505127MTX 1/16 R/C Cars Block Diagram - FCC ID OTM-85051-27MTX

FCC ID OTM-85051-27MTX

Block Diagram

1/16 R/C Cars

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-85051-27MTX
Document ID2612117
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment Class1/16 R/C Cars
Product Code8505127MTX
Application IDyo+oj+X3gYF8VoXXjayNNg==
Application PurposeOriginal Equipment
Application Date2015-05-13
Frequency Range27.145 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByEric Ho
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2015-05-13
Available2015-05-13
Created2015-04-16
Modified2015-05-05
Pages1
File TypeAdobe Acrobat PDF
File Size139452
File SHA-256d20415c80d6a1943777a8a2bdfd08c881bcb8a346352a60eb24b8b938d5badb5
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerWindows 9x/NT/2000/XP User llPDFLib 3.x
FCC.gov SourcesFCC.gov 2612117
