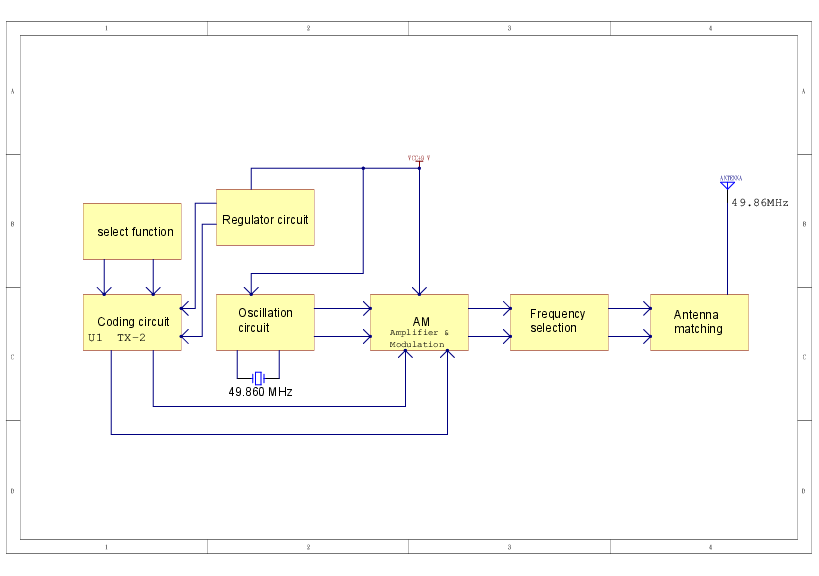

8506649MTX 1/16 R/C Cars Block Diagram - FCC ID OTM-85066-49MTX

FCC ID OTM-85066-49MTX

Block Diagram

1/16 R/C Cars

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-85066-49MTX
Document ID2613284
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment Class1/16 R/C Cars
Product Code8506649MTX
Application IDcFPRMGnDBkPJI9l05p+XhA==
Application PurposeOriginal Equipment
Application Date2015-05-13
Frequency Range49.86 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByEric Ho
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2015-05-13
Available2015-05-13
Created2015-04-16
Modified2015-05-13
Pages1
File TypeAdobe Acrobat PDF
File Size160281
File SHA-2568e1d0ccb0551cb63a2e70f4bb3565452a793cbfdd23977848f972563dcbeb053
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerWindows 9x/NT/2000/XP User llPDFLib 3.x
FCC.gov SourcesFCC.gov 2613284
