890211749MRX FL 1/24 RC STREET PRO... - FCC ID OTM-8902117-49MRX

FCC ID OTM-8902117-49MRX

Block Diagram

FL 1/24 RC STREET PRO (5F633F9), FL RC 1/24 TRUCK ASST, 1/26 RC CARS

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-8902117-49MRX
Document ID3590980

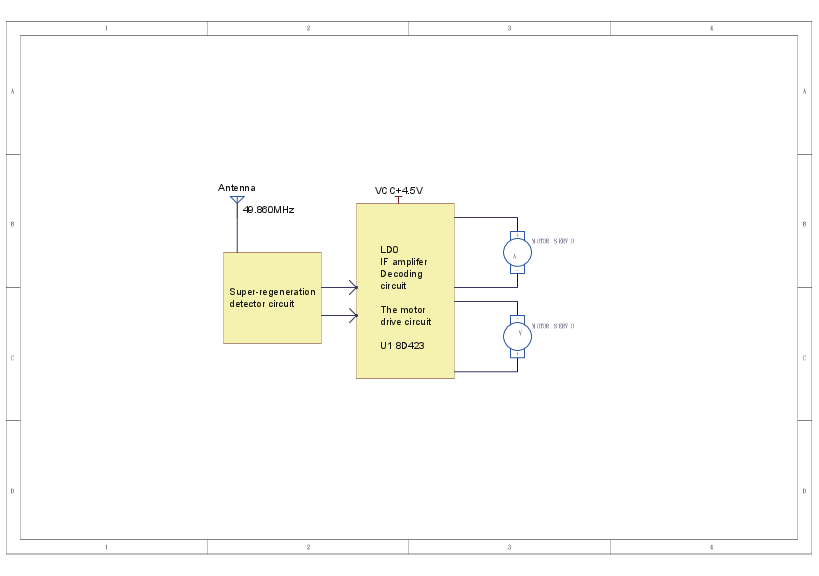

Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment ClassFL 1/24 RC STREET PRO (5F633F9), FL RC 1/24 TRUCK ASST, 1/26 RC CARS
Product Code890211749MRX
Application IDGXgp1w8GpnuXwUg18CWVrQ==
Application PurposeOriginal Equipment
Application Date2017-10-02
Frequency Range49.86 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2017-10-02
Available2017-10-02
Created2015-04-24
Modified2017-05-31
Pages1
File TypeAdobe Acrobat PDF
File Size164988
File SHA-2565e83070f8b6066ee0fcc859a20fe5c72cdfb18987d30ca19738d53a0f9c4cdbd
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerllPDFLib 3.x Windows 9x/NT/2000/XP User
FCC.gov SourcesFCC.gov 3590980
