AD1724049MTX FL 1/24 RC Monster... - FCC ID OTM-AD17240-49MTX

FCC ID OTM-AD17240-49MTX

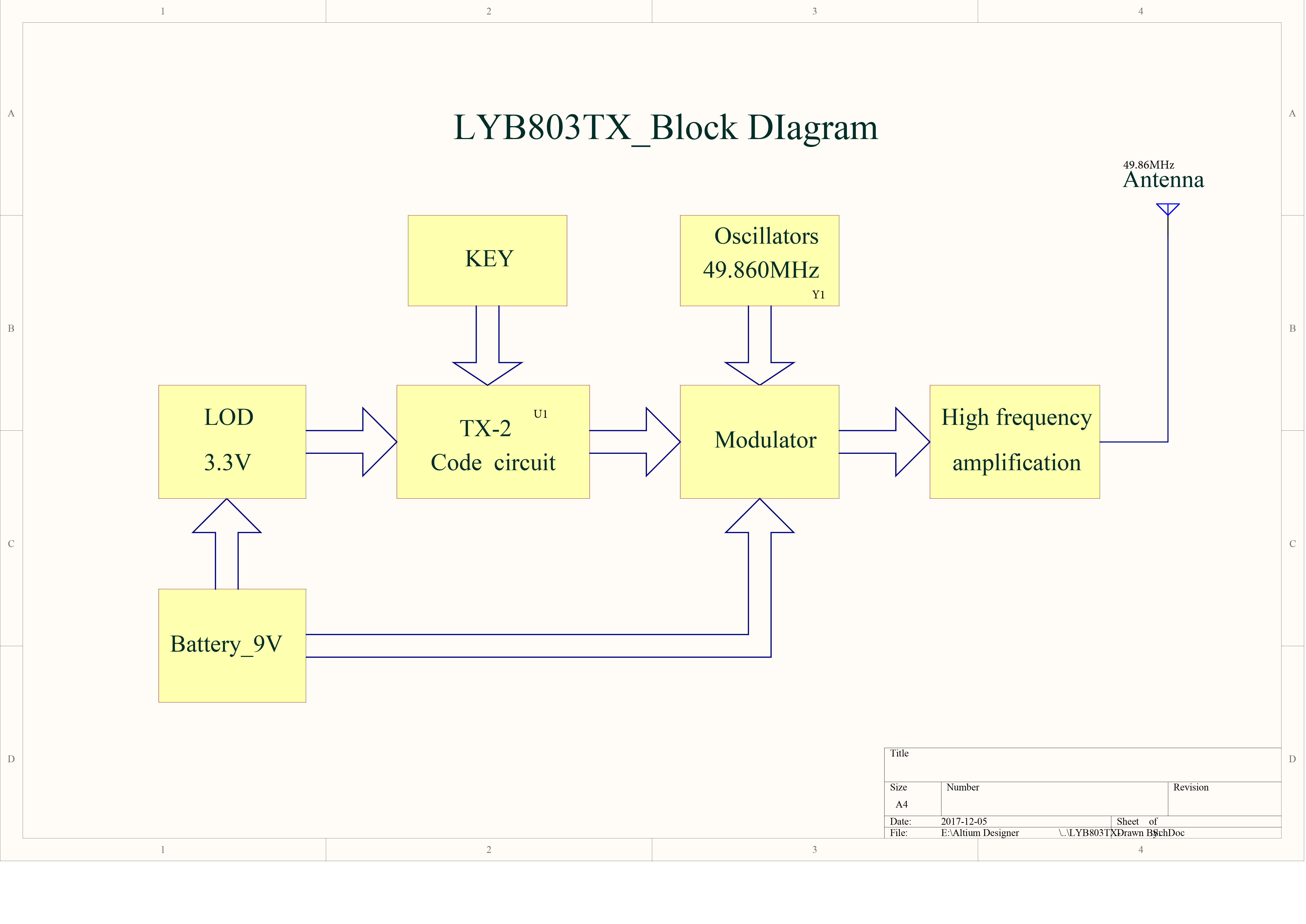

Block Diagram

FL 1/24 RC Monster Wheels Trucks

by KIDZTECH TOYS MANUFACTURING LTD

Document preview loads when visible.

Document Details

FCC IDOTM-AD17240-49MTX
Document ID3807681
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantKIDZTECH TOYS MANUFACTURING LTD
Equipment ClassFL 1/24 RC Monster Wheels Trucks
Product CodeAD1724049MTX
Application IDwVSjyPaBsxMtFZygr4s9Nw==
Application PurposeOriginal Equipment
Application Date2018-04-06
Frequency Range49.86 MHz
FRN0021921747
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2018-04-06
Available2018-04-06
Created2017-12-05
Modified2018-03-08
Pages1
File TypeAdobe Acrobat PDF
File Size90416
File SHA-2568129c3ea89e9312a40706859ea8d5711b90ecdb2ade753b8b05da87e8eae9941
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata ProducerWindows 9x/NT/2000/XP User llPDFLib 3.x
FCC.gov SourcesFCC.gov 3807681
