TX240V 2.4 GHz Wireless Security Video Camera... - FCC ID OU4TX240V

FCC ID OU4TX240V

Module Bottom View

2.4 GHz Wireless Security Video Camera

by Xanboo, Inc.

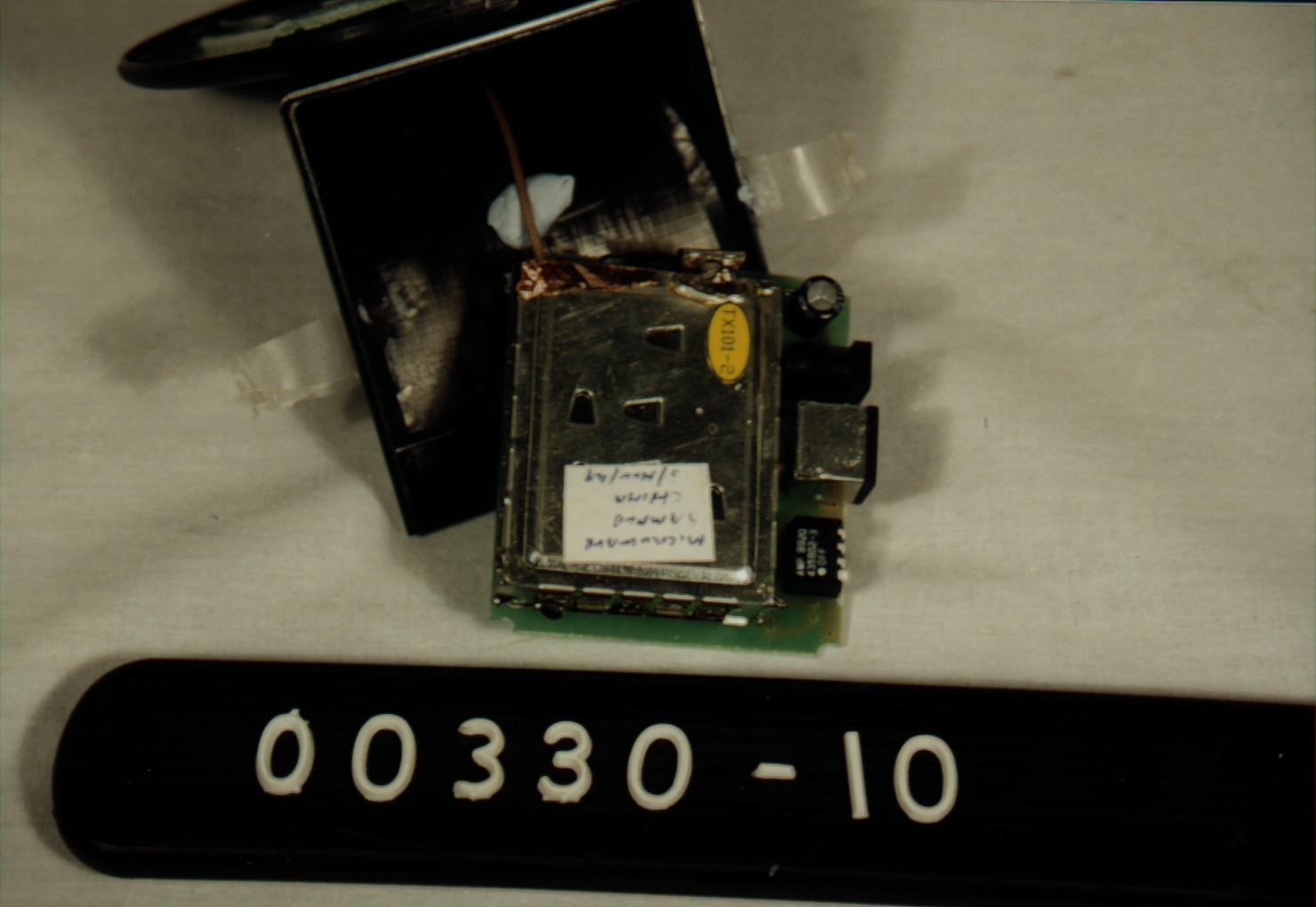

Module Bottom View

Document Details

FCC IDOU4TX240V
Document ID90231
Document TypeInternal Photos
DescriptionModule Bottom View
ApplicantXanboo, Inc.
Equipment Class2.4 GHz Wireless Security Video Camera
Product CodeTX240V
Application IDnsQGhwwWQJgE27sRL6gXZA==
Application PurposeOriginal Equipment
Application Date2000-04-18
Frequency Range2.432 MHz
FRN0007774151
Certified ByKent E. Britain Sr. RF Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-03-08
Available2000-04-18
Pages0
File TypeJPEG Image
File Size92788
File SHA-256425f22e4ebac7c6236732d9be2f27e2c1941beb5fc9d8b6526389f3a86144355
FCC.gov SourcesFCC.gov 90231
