G8D382HA Automotive Security Transmitter... - FCC ID OUCG8D-382H-A

FCC ID OUCG8D-382H-A

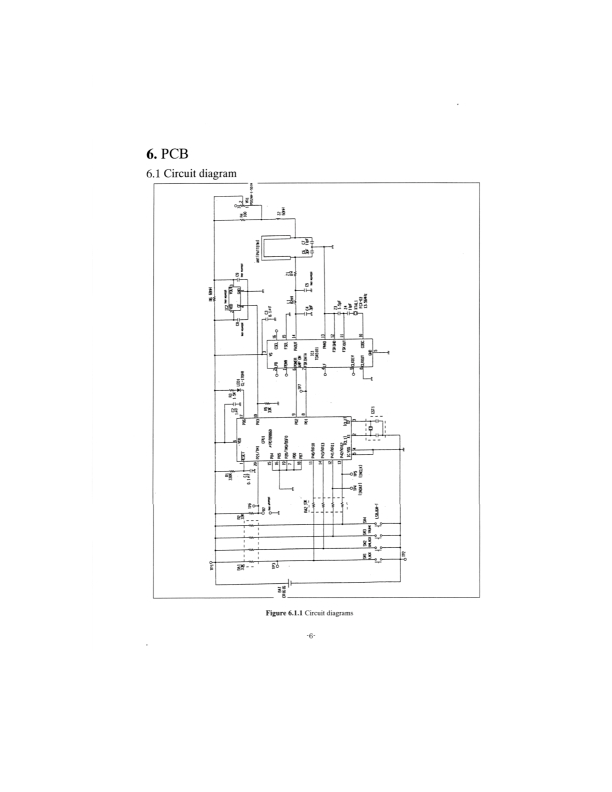

Schematic diagram

Automotive Security Transmitter

by NIDEC MOBILITY CORPORATION

Document preview loads when visible.

Document Details

FCC IDOUCG8D-382H-A
Document ID247030
Document TypeSchematics
DescriptionSchematic diagram
ApplicantNIDEC MOBILITY CORPORATION
Equipment ClassAutomotive Security Transmitter
Product CodeG8D382HA
Application IDxw0/QW56gQneFtZiArQnzg==
Application PurposeOriginal Equipment
Application Date2002-06-04
Frequency Range433.92 MHz
FRN0006369961
Test FirmJapan Quality Assurance Org.
Certified ByHarumi Itatsu Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2002-06-04
Available2002-06-04
Created2002-06-04
Modified2002-06-05
Pages1
File TypeMicrosoft Word
File Size804865
File SHA-256cc25f5836986879ab1d9e71cd899307f31d7ddbb22a3bb18fbd07ecb766885c6
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 247030
