WK30ATX07 Wireless Remote Transmitter... - FCC ID OUCWK30-ATX-07

FCC ID OUCWK30-ATX-07

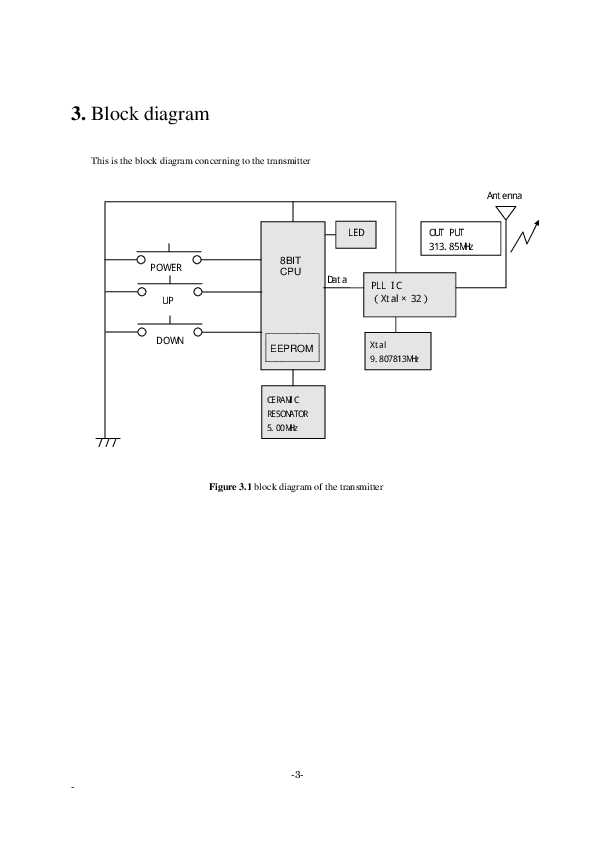

Block Diagram

Wireless Remote Transmitter

by NIDEC MOBILITY CORPORATION

Document preview loads when visible.

Document Details

FCC IDOUCWK30-ATX-07
Document ID388188
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantNIDEC MOBILITY CORPORATION
Equipment ClassWireless Remote Transmitter
Product CodeWK30ATX07
Application IDbHQrsVOifD/RQDE7cS2uWA==
Application PurposeOriginal Equipment
Application Date2004-01-12
Frequency Range313.85 MHz
FRN0006369961
Test FirmJapan Quality Assurance Org.
Certified BySteve Cheng EMC Engineeirng Manager ( AGENT )
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-01-12
Available2004-01-12
Created2003-12-29
Modified2003-12-29
Pages1
File TypeAdobe Acrobat PDF
File Size28408
File SHA-256c0d03d54b75ee22a2df21f3566aa955a67ebb07941d1061db57e8d2fc698e01a
PDF Metadata Author品質保証部　品質保証課
PDF Metadata ProducerWord 用 Acrobat PDFMaker 5.0 Acrobat Distiller 5.0 (Windows)
FCC.gov SourcesFCC.gov 388188
