4407RCBEEP Remote Controlled Toy Block... - FCC ID OW24407RCBEEP

FCC ID OW24407RCBEEP

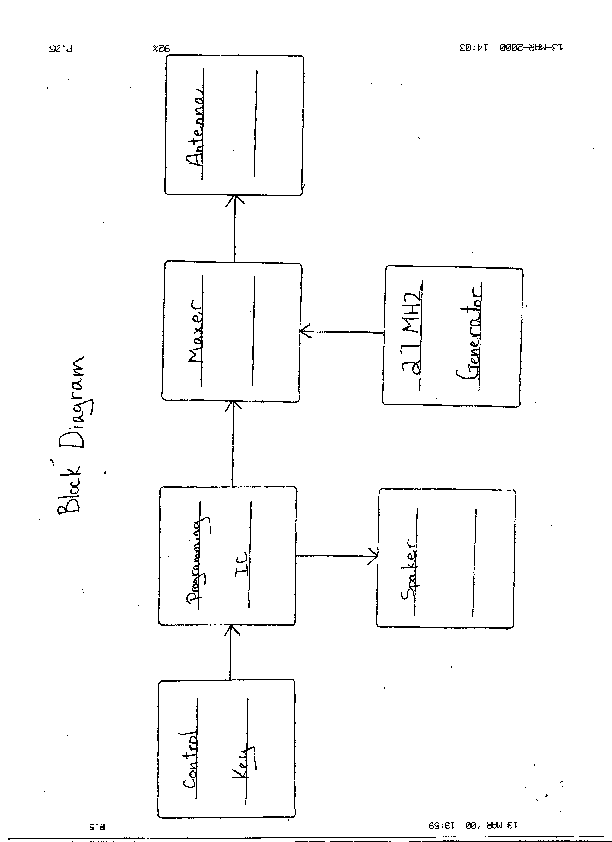

Block Diagram

Remote Controlled Toy

by Tomy (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDOW24407RCBEEP
Document ID113357
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantTomy (HK) Ltd.
Equipment ClassRemote Controlled Toy
Product Code4407RCBEEP
Application IDaY9aGzUb51df5Hl3RgKxCA==
Application PurposeOriginal Equipment
Application Date2000-08-11
Frequency Range27.145 MHz
FRN0005846399
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-08-15
Available2000-08-11
Created2000-06-23
Modified2000-07-05
Pages1
File TypeAdobe Acrobat PDF
File Size44689
File SHA-25639ff052ff9d727954cdc2c0bd016b83025f2866a9e26d60f0eb13fedcbe48095
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 113357
