WSTX Wireless Weather Station (Transmitter... - FCC ID OWF-WSTX

FCC ID OWF-WSTX

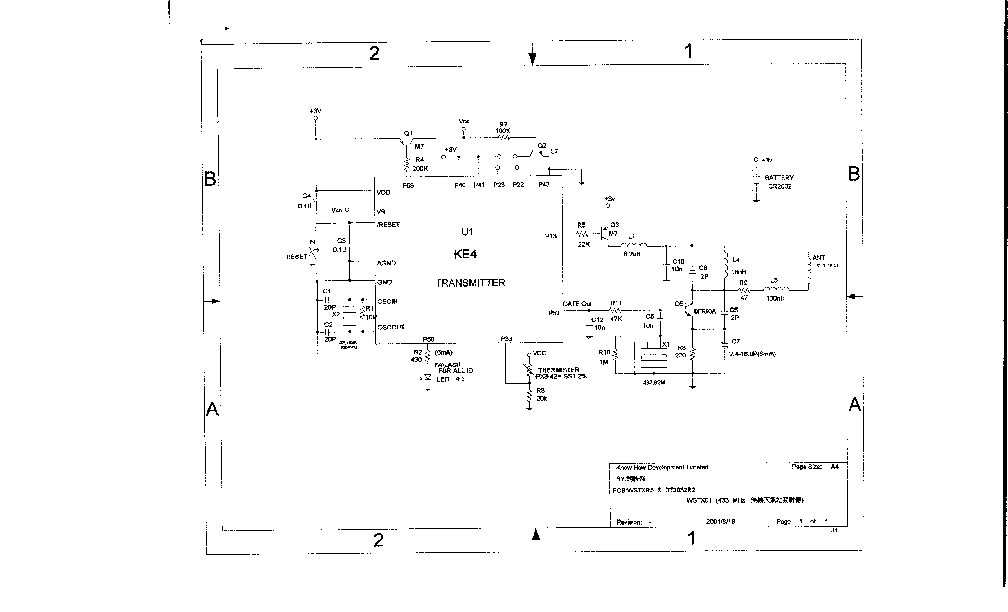

Circuit Diagram

Wireless Weather Station (Transmitter Part)

by Know-How Development Ltd

Document preview loads when visible.

Document Details

FCC IDOWF-WSTX
Document ID171230
Document TypeSchematics
DescriptionCircuit Diagram
ApplicantKnow-How Development Ltd
Equipment ClassWireless Weather Station (Transmitter Part)
Product CodeWSTX
Application IDF3wTAzXWiVn8SzwM/51qcg==
Application PurposeOriginal Equipment
Application Date2001-09-24
Frequency Range433 MHz
FRN0008649329
Test FirmIntertek Testing Services Hong Kong
Certified ByWilson Loke Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2001-09-25
Available2001-09-24
Created2001-09-12
Modified2001-09-12
Pages1
File TypeAdobe Acrobat PDF
File Size36069
File SHA-256f9919d9e28fcfb13c7d8adc3668fc934f8513296bf251ea5d47ac3e2d23fd196
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 171230
