324TX EZ-Remote or Irritrol Systems Kwikstart... - FCC ID OXP324-TX

FCC ID OXP324-TX

Expository statement

EZ-Remote or Irritrol Systems Kwikstart RC

by The Toro Company

Document preview loads when visible.

Document Details

FCC IDOXP324-TX
Document ID92008
Document TypeOperational Description

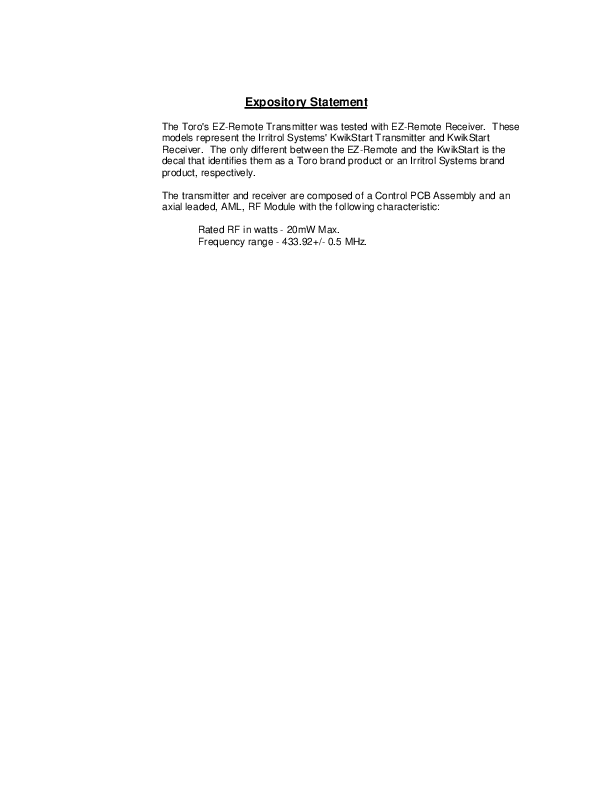

DescriptionExpository statement
ApplicantThe Toro Company
Equipment ClassEZ-Remote or Irritrol Systems Kwikstart RC
Product Code324TX
Application IDQcV1aq1tQYm4nfaiEX+wFQ==
Application PurposeOriginal Equipment
Application Date2000-03-27
Frequency Range433 MHz
FRN0014042428
Test FirmCKC Laboratories, Inc.
Certified ByTracy Phillips Documentation Control Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-03-17
Available2000-03-27
Created2000-03-17
Modified2000-03-17
Pages1
File TypeMicrosoft Word
File Size19969
File SHA-256f41c8d11a1c5b169e2ce76f9b41d7ff2dacbae2057ef71a4ceca6ff4508b7c06
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 92008
