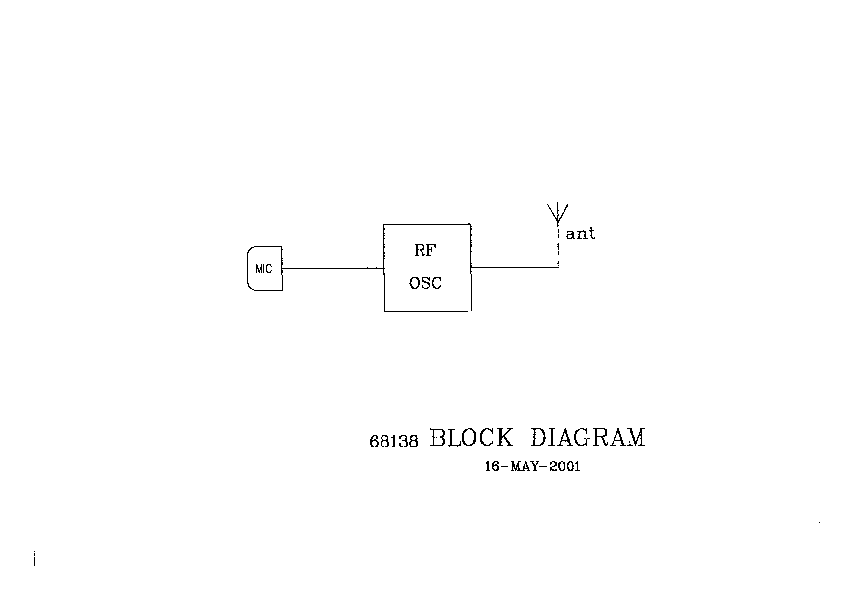

68138 FM Wireless Microphone Block Diagram - FCC ID OY268138

FCC ID OY268138

block diagram

FM Wireless Microphone

by Superior Focus International (Asia) Limited

Document preview loads when visible.

Document Details

FCC IDOY268138
Document ID161708
Document TypeBlock Diagram
Descriptionblock diagram
Document Title(16)
ApplicantSuperior Focus International (Asia) Limited
Equipment ClassFM Wireless Microphone
Product Code68138
Application IDrvl9AO17nkK8M2h5mlo2VQ==
Application PurposeOriginal Equipment
Application Date2001-07-24
Frequency Range90.5-104.4 MHz
FRN0007402571
Test FirmHong Kong Standards & Testing Cen.
Certified ByChris Harvey EMC Lab Director
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-07-26
Available2001-07-24
Created2001-06-18
Modified2001-07-03
Pages1
File TypeAdobe Acrobat PDF
File Size15704
File SHA-25638dc01e5567a34144bdeaea221f04a3d1ef924578efddc2fc4c0f67c6e0777cf
PDF Metadata Authorcee3
PDF Metadata ProducerJune 18, 2001 (16) Acrobat PDFWriter 4.0 for Windows
FCC.gov SourcesFCC.gov 161708
