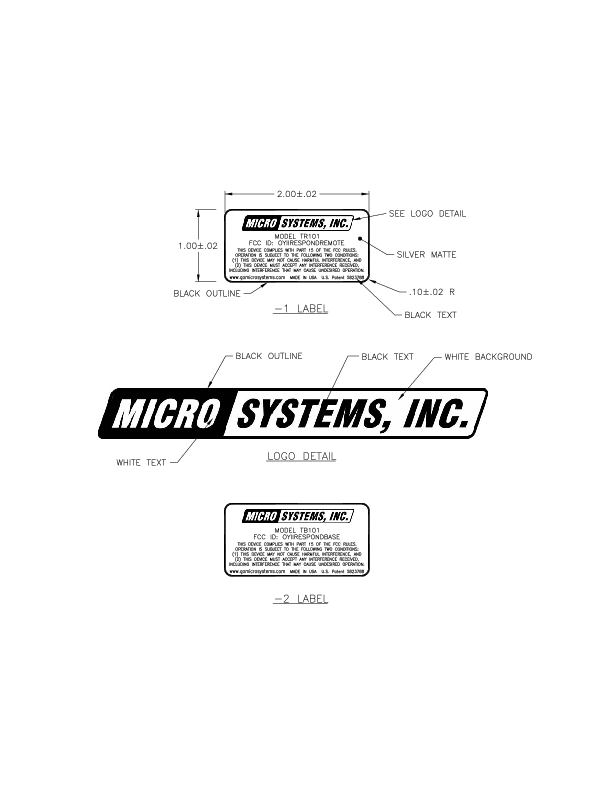

IRESPONDREMOTE Model TR101 Label Diagram - FCC ID OYIIRESPONDREMOTE

FCC ID OYIIRESPONDREMOTE

Label

Model TR101

by Wireless eSystems, Inc.

Document preview loads when visible.

Document Details

FCC IDOYIIRESPONDREMOTE
Document ID481317
Document TypeID Label/Location Info
DescriptionLabel
Document TitleFCCLBL_irespond Model (1)
ApplicantWireless eSystems, Inc.
Equipment ClassModel TR101
Product CodeIRESPONDREMOTE
Application IDDT7dGUvvWNXmA8HqhV9DqQ==
Application PurposeOriginal Equipment
Application Date2004-10-22
Frequency Range2405-2480 MHz
FRN0012918546
Test FirmNemko Dallas, Inc.
Certified ByTom Tidwell Front Line Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2004-10-22
Available2004-10-22
Created2004-08-19
Modified2004-08-19
Pages1
File TypeAdobe Acrobat PDF
File Size62569
File SHA-2565cfab0fe4fe7a717a87cfdae6c415ab50ea6751a78efcd233cf7e76ad35bcbfd
PDF Metadata AuthorDavid Stake
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) David Stake
FCC.gov SourcesFCC.gov 481317
