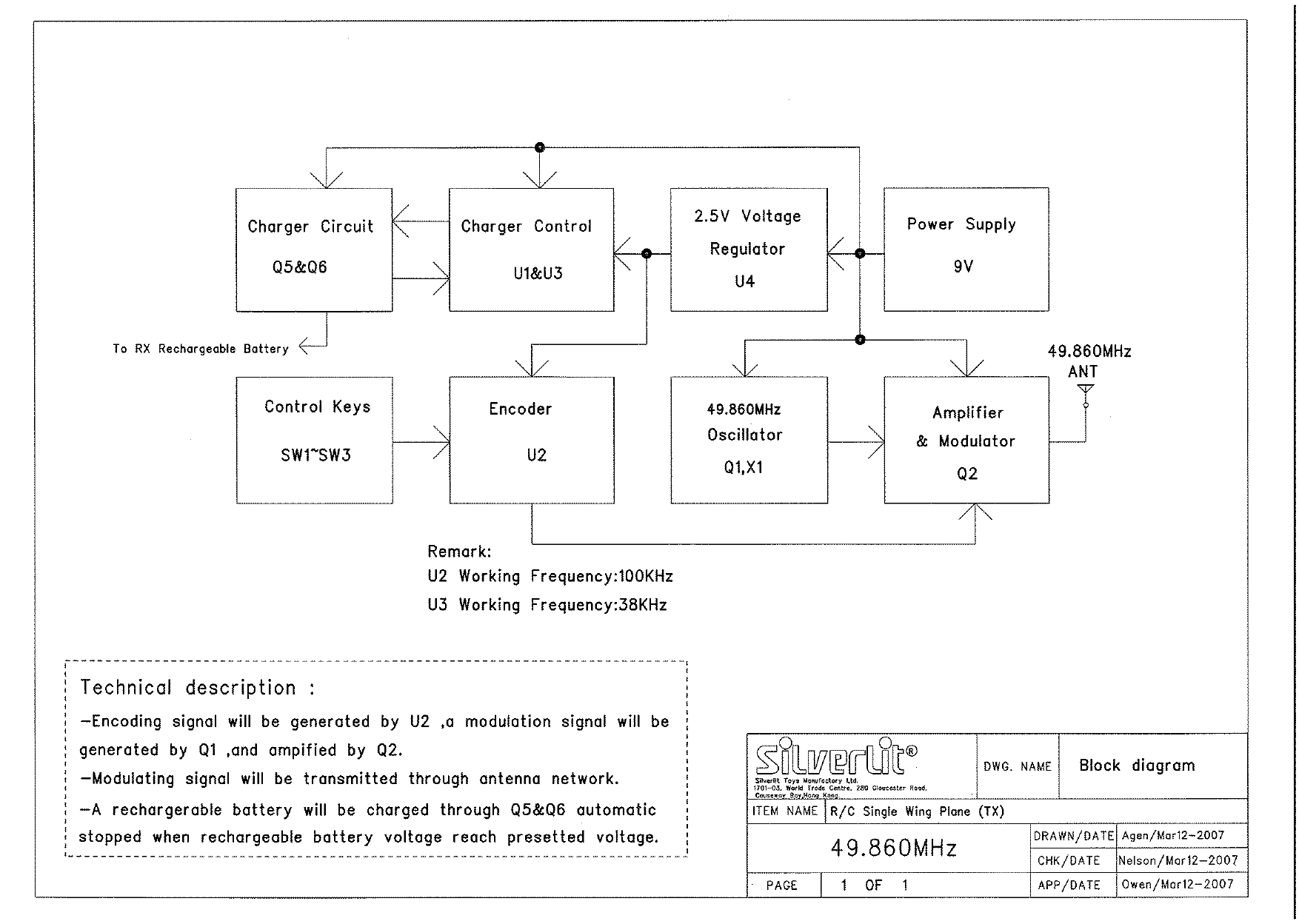

TX0498600701 RC Airplane Block Diagram - FCC ID OYK-TX049860-0701

FCC ID OYK-TX049860-0701

Block Diagram

RC Airplane

by Silverlit Toys Manufactory Ltd.

Document preview loads when visible.

Document Details

FCC IDOYK-TX049860-0701
Document ID778729
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNone
ApplicantSilverlit Toys Manufactory Ltd.
Equipment ClassRC Airplane
Product CodeTX0498600701
Application IDNOl8uyfOXHUESrhyzOI4rA==
Application PurposeOriginal Equipment
Application Date2007-04-10
Frequency Range49.86 MHz
FRN0018442582
Test FirmIntertek Testing Services Hong Kong
Certified ByAnthony Chan Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2007-04-10
Available2007-04-10
Created2007-03-31
Modified2007-03-31
Pages1
File TypeAdobe Acrobat PDF
File Size65439
File SHA-256970d147dd3d97ff9baaf9644e117f4b7c3a2ed06b2dddf316810ea5ac0bdecdb
PDF Metadata AuthorNone
PDF Metadata CreatorNone
PDF Metadata ProducerNone
FCC.gov SourcesFCC.gov 778729
