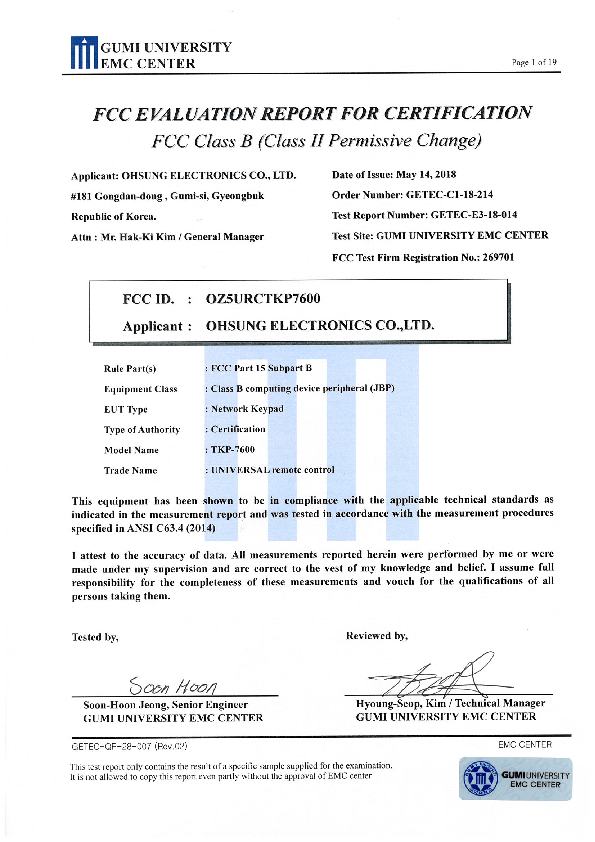

Page 1 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 2 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 3 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 4 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 5 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 6 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 7 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 8 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 9 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 10 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 11 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 12 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 13 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 14 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 15 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 16 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 17 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 18 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Page 19 of URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.

Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
2 / 19
CONTENTS
1. GENERAL INFORMATION ...................................................................................................................................... 3
2. INTRODUCTION ........................................................................................................................................................ 4
3. PRODUCT INFORMATION ...................................................................................................................................... 5
3.1 DESCRIPTION OF EUT .............................................................................................................................................. 5
3.2 SUPPORT EQUIPMENT / CABLES USED ..................................................................................................................... 6
3.3 MODIFICATION ITEM(S) ........................................................................................................................................... 6
4. DESCRIPTION OF TESTS ......................................................................................................................................... 7
4.1 TEST CONDITION ...................................................................................................................................................... 7
4.2 CONDUCTED EMISSION ............................................................................................................................................ 8
4.3 RADIATED EMISSION ................................................................................................................................................ 9
5. CONDUCTED EMISSION........................................................................................................................................ 10
5.1 OPERATING ENVIRONMENT ................................................................................................................................... 10
5.2 TEST SET-UP ........................................................................................................................................................... 10
5.3 MEASUREMENT UNCERTAINTY.............................................................................................................................. 10
5.4 LIMIT ...................................................................................................................................................................... 11
5.5 TEST EQUIPMENT USED.......................................................................................................................................... 11
5.6 TEST DATA FOR CONDUCTED EMISSION ................................................................................................................ 11
6. RADIATED EMISSION ............................................................................................................................................ 13
6.1 OPERATING ENVIRONMENT ................................................................................................................................... 13
6.2 TEST SET-UP ........................................................................................................................................................... 13
6.3 MEASUREMENT UNCERTAINTY.............................................................................................................................. 13
6.4 LIMIT ...................................................................................................................................................................... 14
6.5 TEST EQUIPMENT USED.......................................................................................................................................... 15
6.6 TEST DATA FOR RADIATED EMISSION .................................................................................................................... 15
11. SAMPLE CALCULATIONS ................................................................................................................................... 18
11.1 EXAMPLE 1 : ......................................................................................................................................................... 18
11.2 EXAMPLE 2 : ......................................................................................................................................................... 18
12. RECOMMENDATION & CONCLUSION ............................................................................................................ 19
APPENDIX A
APPENDIX B
APPENDIX C
APPENDIX D
APPENDIX E
– ATESTSTATION STATEMENT
– INFORMATION OF CLASS II PERMISSIVE CHANGE
– TEST SET-UP PHOTOGRAPHS
– EXTERNAL PHOTOGRAPHS
– INTERNAL PHOTOGRAPHS
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
3 / 19
Scope: Measurement and determination of electromagnetic emissions (EME) of radio frequency devices
including intentional and / or unintentional radiators for compliance with technical rules and regulations of
the Federal Communications Commission.
1. General Information
Applicant: OHSUNG ELECTRONICS CO.,LTD.
Applicant Address: #181, Gongdan 1-dong, Gumi-si, Gyeongsangbuk-do, Republic of Korea
Manufacturer: OHSUNG ELECTRONICS CO.,LTD.
Manufacturer Address: #181, Gongdan 1-dong, Gumi-si, Gyeongsangbuk-do, Republic of Korea
Contact Person: Mr. Hak-Ki Kim / General Manager
Telephone Number: +82-54-468-7281
Fax Number: +82-54-461-8368

FCC ID
OZ5URCTKP7600

EUT Type
Network Keypad

Equipment Class
Class B computing device peripheral (JBP)

Model Name
TKP-7600

Trade Name
UNIVERSAL remote control

Serial Number
Prototype

Rule Part(s)
FCC Part 15 Subpart B

Type of Authority
Certification

Test Procedure(s)
ANSI C63.4 (2009)

Dates of Test
May. 03 ~ 14, 2018

Place of Test
GUMI UNIVERSITY EMC CENTER
(FCC Test Firm Registration Number: 269701)
37 Yaeun-ro, Gumi-si, Gyeongsangbuk-do, 730-711, Republic of Korea.

Test Report Number
GETEC-E3-18-014

Date of Issue
May 14, 2018
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
4 / 19
2. Introduction
The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose
Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.42009) was used in determining radiated and conducted emissions emanating from OHSUNG ELECTRONICS
CO.,LTD. Network Keypad (Model Name: TKP-7600)
These measurement tests were conducted at GUMI UNIVERSITY EMC CENTER
The site address is 37 Yaeun-ro, Gumi-si, Gyeongsangbuk-do, 730-711, Republic of Korea.
This test site is one of the highest point of Gumi UNIVERSITY at about 200 km away from Seoul city and 40 km
away from Daegu city. It is located in the valley surrounded by mountains in all directions where ambient radio
signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for
the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be
in compliance with the requirements of §2.948 according to ANSI C63.4 (2009)
GUMI UNIVERSITY EMC CENTER
37 Yaeun-ro, Gumi-si,
Gyeongsangbuk-do, 730-711,
Republic of Korea
Tel: +82-54-440-1195
Fax: +82-54-440-1199
Fig 1. The map above shows the Gumi UNIVERSITY in vicinity area.
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
5 / 19
3. Product Information
3.1 Description of EUT
The Equipment under Test (EUT) is the OHSUNG Electronics Co.,Ltd.
Network Keypad (Model Name: TKP-7600) FCC ID.: OZ5URCTKP7600
Type of product
Network Keypad
Model Name
TKP-7600
Power
DC 48 V (Standard PoE Injector or PoE switch(Purchased separately))
Microprocessor
Coretex-A9 dual 1 GHz
Memory
4 GB eMMC, 1 GB RAM
Devices
Supports up to 255 Devices
Pages
Supports up to 255 Pages on each Device
Macro Capability
Up to 255 steps
Network
One 10/100 Ethernet port (PoE)
LCD
7 inch (1280 x800)
Weight
10.51 oz
Size
7.91” x 5.04” x 1.03”
Maximum Clock frequency
400 MHz
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
6 / 19
3.2 Support Equipment / Cables used
3.2.1 Used Support Equipment
Description
Manufacturer
Model Name
S/N & FCC ID.
Network Keypad
OHSUNG ELECTRONICS CO.,LTD.
TKP-7600
S/N: None
FCC ID.: OZ5URCTKP7600
PoE Switching Hub
OHSUNG ELECTRONICS CO.,LTD.
MFSPOE-8
S/N: None
FCC ID.: None
See “Appendix D – Test Setup Photographs” for actual system test set-up
3.2.2 System configuration
Description
Manufacturer
Model Name
S/N & FCC ID.
3.2.3 Used Cable(s)
Cable Name
Condition
Description
LAN cable
Connected to the EUT and MFSPOE-81)
10.00 m shielded
1) MFSPOE-8: PoE Switching Hub
3.3 Modification Item(s)
- None
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
7 / 19
4. Description of tests
4.1 Test Condition
The EUT was installed, arranged and operated in a manner that is most representative of equipment as typically used.
The measurements were carried out while varying operating modes and cable positions within typically arrangement to
determine maximum emission level.
The test conditions of the noted test mode(s) in this test report are;

Test Voltage / Frequency : AC 120 V / 60 Hz

Test Mode(s)
-. Communication mode

Operating test setting
-. Conducted Emission: The EUT was communication via LAN port to MFSPOE-8
-. Radiated Emission: The EUT was communication via LAN port to MFSPOE-8
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
8 / 19
4.2 Conducted Emission
The Line conducted emission test facility is inside a 4 m × 8 m × 2.5 m shielded enclosure.
(FCC Test Film Registration No.: 269701)
The EUT was placed on a non-conducting 1.0 m by 1.5 m table, which is 0.4 m in height and 0.8 m away from the
vertical wall of the shielded enclosure.
The EUT is powered from the Rohde & Schwarz LISN (ENV216) and the support equipment is powered from the
Rohde & Schwarz LISN (ENV216). Powers to the LISN are filtered by high-current high insertion loss power line
filter.
Sufficient time for EUT, support equipment, and test equipment was allowed in order for them to warm up to their
normal operating condition.
The RF output of the LISN was connected to the EMI test receiver (Rohde & Schwarz, ESCI).
Exploratory measurements were conducted to identify the highest emission by operating the EUT in a range of typical
modes of operation, cable positions, system configuration and arrangement.
Based on exploratory measurements, the final measurements were conducted at the worst test conditions.
Exploratory measurements were scanned using Peak mode of EMI Test receiver from 150 kHz to 30 MHz with 20 ms
sweep time. The final measurements were measured with Quasi-Peak and Average mode.
The bandwidth of EMI Test Receiver was set to 9 kHz. Interface cables were connected to the available interface
ports of the test unit. Excess cable lengths were bundled at center with 30 cm ~ 40 cm.
Fig 2. Impedance of LISN
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
9 / 19
4.3 Radiated Emission
Exploratory Radiated measurements were conducted at the 3 m or 10 m semi anechoic chamber in order to identify
the highest emission by operating the EUT in a range of typical modes of operation, cable positions, system
configuration and arrangement.
Based on exploratory measurements, the final measurements were conducted at the worst test conditions.
Final measurements of below 1 GHz were made at 3 m or 10 m Chamber (FCC Test Firm Registration No.: 269701)
or Open area test site (FCC Test Firm Registration No.: 269701) that complies with CISPR 16/ANSI C63.4.
Above 1 GHz final measurements were conducted at the 3m Chamber (FCC Test Firm Registration No.: 269701) only.
For measurements above 1GHz, the bottom side of 3 m chamber was installed with absorbers in order to meet
SVSWR Limit.
Exploratory measurements were scanned using Peak mode of EMI Test receiver and final measurements were
measured with Quasi-Peak mode (Below 1 GHz) and Peak & Average mode (Above 1 GHz).
The measurements were performed by rotating the EUT 360° and adjusting the receive antenna height from 1.0 m to
4.0 m. All frequencies were investigated in both horizontal and vertical antenna polarity.
Fig 3. Dimensions of test site (Below 1 GHz)
Fig 4. Dimensions of test site (Above 1 GHz)
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
10 / 19
5. Conducted Emission
5.1 Operating Environment
Temperature
Relative Humidity
23.9 ℃
48.4 % R.H.
5.2 Test Set-up
The conducted emission measurements were performed in the shielded room.
The EUT was placed on wooden table, 0.4 m heights above the floor, 0.8 m from the reference ground plan
e (GRP) wall and 0.8 m from AMN &ISN.
AMN is bonded on horizontal reference ground plane.
The ground plane, which was electrically bonded to the shield room, ground system and all power lines enter
ing the shield room, were filtered.
5.3 Measurement Uncertainty
The measurement uncertainty was calculated in accordance with ISO “Guide to the expression of uncertainty in
measurement.”
The measurement uncertainty was given with a confidence of 95 %.
Test Items
Uncertainty
Remark
Conducted emission (9 kHz ~ 150 kHz)
3.85 dB
Confidence level of approximately
95 % (k = 2)
Conducted emission (150 kHz ~ 30 MHz)
3.32 dB
Confidence level of approximately
95 % (k = 2)
Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as
specified in CISPR 16-4-2.
The listed uncertainties are the worst case uncertainty for the entire range of measurement. please note that the
uncertainty values are provided for informational purposes only are not used in determining the PASS/FAIL results
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
11 / 19
5.4 Limit
RFI Conducted
FCC Limit(dBµV) Class B
Freq. Range
Quasi-Peak
Average
150 kHz ~ 0.5 MHz
66 ~ 56*
56 ~ 46*
0.5 MHz ~ 5 MHz
56
46
5 MHz ~ 30 MHz
60
50
*Limits decreases linearly with the logarithm of frequency.
5.5 Test Equipment used
Model Name
 - ESCI
 - ENV216
 - ENV216
 - ENY81-CA6
 - ISN T8
 - EMC 32
Manufacturer
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
Rohde & Schwarz
TESEQ.GmbH
Rohde & Schwarz
Description
EMI Test Receiver
LISN
LISN
ISN
ISN
Software
Serial Number
100237
100173
100172
101573
24568
Ver.8.53
Due to Calibration
Apr. 16, 2019
Apr. 12, 2019
Apr. 12, 2019
Apr. 24, 2019
May. 02, 2019
N/A
5.6 Test data for Conducted Emission
-. Test Date
-. Resolution Bandwidth
-. Frequency Range
-. Line
: May. 14, 2018
: 9 kHz
: 0.15 MHz ~ 30 MHz
: L1: Live, N: Neutral
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
12 / 19
▪ Operating condition: Communication mode
< Fig 5. Graph of continuous disturbance >
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
13 / 19
6. Radiated Emission
6.1 Operating Environment
Temperature
Relative Humidity
22.3 ℃
37.4 % R.H.
6.2 Test Set-up
A preliminary and final measurement was at 3 m & 10 m anechoic chamber.
The EUT was placed on a non-conductive turntable approximately 1.0 m above the ground plane.
The turntable with EUT was rotated 360°, and the antenna was varied in height between 1.0 m and 4.0 m in order to
determine the maximum emission levels.
This procedure was performed for both horizontal and vertical polarization of the receiving antenna.
6.3 Measurement Uncertainty
The measurement uncertainty was calculated in accordance with ISO “Guide to the expression of uncertainty in
measurement”.
Test Items(10 m Anechoic Chamber)
Uncertainty
Remark
Radiated emission (30 MHz ~ 300 MHz, 10 m, Vertical)
3.50 dB
Radiated emission (30 MHz ~ 300 MHz, 10 m, Horizontal)
3.73 dB
Radiated emission (300 MHz ~ 1 000 MHz, 10 m, Vertical)
3.67 dB
Radiated emission (300 MHz ~ 1 000 MHz, 10 m, Horizontal)
3.64 dB
Radiated emission (1 000 MHz ~ 6 000 MHz, 3 m)
4.39 dB
Confidence level
95 % (k = 2)
Confidence level
95 % (k = 2)
Confidence level
95 % (k = 2)
Confidence level
95 % (k = 2)
Confidence level
95 % (k = 2)
of approximately
of approximately
of approximately
of approximately
of approximately
Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as
specified in CISPR 16-4-2.
The listed uncertainties are the worst case uncertainty for the entire range of measurement. please note that the
uncertainty values are provided for informational purposes only are not used in determining the PASS/FAIL results
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
14 / 19
6.4 Limit
Frequency
(MHz)
FCC Limit @ 3 m.
dBµV/m
CISPR Limit @ 10 m.
dBµV/m
30 ~ 88
40.0
30.0
88 ~ 216
43.5
30.0
216 ~ 230
46.0
30.0
230 ~ 960
46.0
37.0
960 ~ 1 000
54.0
37.0
Frequency
(MHz)
FCC Class B Peak Limit @ 3 m
dBµV/m
FCC Class B Average Limit@ 3 m
dBµV/m
> 1 000
74.0
54.0
Frequency
(MHz)
CISPR Class B Peak Limit @ 3 m
dBµV/m
CISPR Class B Average Limit@ 3 m
dBµV/m
> 1 000
70.0
50.0
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
15 / 19
6.5 Test Equipment used
Model Name
 - ESIB26
Manufacturer
Rohde & Schwarz
Description
EMI Test Receiver
Serial Number Due to Calibration
830482/010
Apr. 16, 2019
 - ESR7
Rohde & Schwarz
EMI Test Receiver
101382
Apr. 17, 2019
 - VULB9160
Schwarzbeck
3099
Sept. 29, 2019
 - BBHA9120D
Schwarzbeck
Broad Band Test
Antenna
Horn ANT
597
Apr. 23, 2019
 - MCU066
maturo GmbH
Position Controller
1390306
N/A
 - TT2.5SI
maturo GmbH
Turntable
1390307
N/A
 - AM 4.0
maturo GmbH
Antenna Mast
1390308
N/A
 - CO3000
Innco system GmbH Position Controller
1390306
N/A
 - DT3000
Innco system GmbH Turntable
1390307
N/A
 - MA4000-EP
Innco system GmbH Antenna Mast
1390308
N/A
 - AFS 44 00101800-25-10P-44 MITEQ
Preamplifier
1258943
Apr. 18,2019
 - TK-PA06S
TESTEK
Preamplifier
170038-L
Apr. 18,2019
 - EMC 32
Rohde & Schwarz
Software
Ver.9.26.01
N/A
6.6 Test data for Radiated Emission
-. Test Date
-. Measurement Distance
-. Note
: May. 03 2018
: 3 m, 10 m
-. Measurement
Frequency range
30 MHz ~ 1 GHz
Above 1 GHz
Detector mode
Quasi peak
Peak / Average
Resolution bandwidth
120 kHz
1 MHz
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
16 / 19
-. 30 MHz ~ 1 GHz
▪ Operating condition: Communication mode
< Fig 6. Radiated emission result (30 MHz ~ 1 000 MHz) >
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
17 / 19
-. 1 GHz ~ 6 GHz
▪ Operating condition: Communication mode
< Fig 7. Radiated emission result (1 000 MHz ~ 6 000 MHz) >
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
18 / 19
11. Sample Calculations
dBµV = 20 Log 10(µV/m)
dBµV = dBm + 107
µV = 10 (dBµV/20)
11.1 Example 1 :
 20.3 MHz
Class B Limit
= 250 µV = 48 dBµV
Reading
= 39.2 dBµV
10 (39.2dBµV/20)
= 91.2 µV
Margin
= 48 dBµV - 39.2 dBµV
= 8.8 dB
11.2 Example 2 :
 66.7 MHz
Class B Limit
= 100 µV/m = 40.0 dBµV/m
Reading
= 31.0 dBµV
Antenna Factor + Cable Loss = 5.8 dB
Total
= 36.8 dBµV/m
Margin
= 40.0 dBµV/m – 36.8 dBµV/m
= 3.2 dB
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Order Number
: GETEC-C1-18-214
Test Report Number
: GETEC-E3-18-014
FCC Part 15 Certification Class II Permissive Change
Page
19 / 19
12. Recommendation & Conclusion
The data collected shows that the OHSUNG ELECTRONICS CO.,LTD.
Network Keypad (Model Name: TKP-7600) was complies with §15.107, 15.109 of the FCC Rules.
- The end -
EUT Type: Network Keypad
FCC ID.: OZ5URCTKP7600
G E T E C
Download: URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Mirror Download [FCC.gov]URCTKP7600 Network Keypad Test Report EMISSION Ohsung Electronics Co., Ltd.
Document ID3851063
Application ID7uE8rQ5Lly18ERoKuD4V8w==
Document DescriptionJBP Test Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize215.46kB (2693212 bits)
Date Submitted2018-05-15 00:00:00
Date Available2018-05-15 00:00:00
Creation Date2018-05-14 19:04:10
Producing SoftwareAdobe PDF Library 11.0
Document Lastmod2018-05-14 19:40:30
Document TitleEMISSION TEST REPORT
Document CreatorWordìš© Acrobat PDFMaker 11
Document Author: 최선미

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : 최선미
Company                         :
Create Date                     : 2018:05:14 19:04:10+09:00
Modify Date                     : 2018:05:14 19:40:30+09:00
Source Modified                 : D:20180514100357
Subject                         :
Has XFA                         : No
Tagged PDF                      : No
XMP Toolkit                     : Adobe XMP Core 5.4-c005 78.147326, 2012/08/23-13:03:03
Metadata Date                   : 2018:05:14 19:40:30+09:00
Creator Tool                    :  Word용 Acrobat PDFMaker 11
Document ID                     : uuid:e0244870-2dab-4033-b12a-f5188b721203
Instance ID                     : uuid:389c97b4-7db4-43ec-87f8-9bc3a88498f8
Format                          : application/pdf
Title                           : EMISSION TEST REPORT
Description                     :
Creator                         : 최선미
Producer                        : Adobe PDF Library 11.0
Keywords                        :
Page Layout                     : OneColumn
Page Count                      : 19
