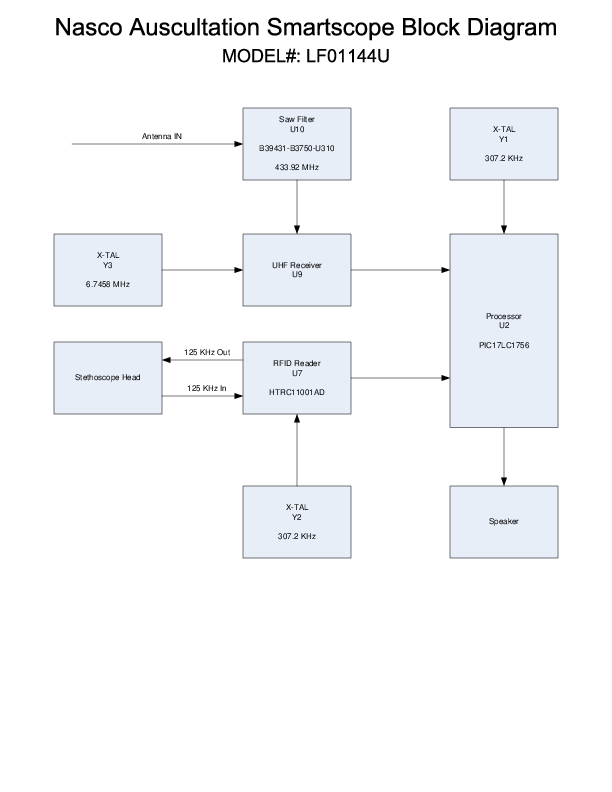

LF01144U SmartScope Block Diagram - FCC ID OZULF01144U

FCC ID OZULF01144U

blk diag

SmartScope

by NASCO Fort Atkinson

Document preview loads when visible.

Document Details

FCC IDOZULF01144U
Document ID715680
Document TypeBlock Diagram
Descriptionblk diag
Document TitleVisio-Smartscope Block Diagram(LF01144U).vsd
ApplicantNASCO Fort Atkinson
Equipment ClassSmartScope
Product CodeLF01144U
Application IDr+FWziCY7e5MqgxYDslUhQ==
Application PurposeOriginal Equipment
Application Date2006-10-15
Frequency Range0.125 MHz
FRN0014042428
Test FirmUniversity of Michigan
Certified ByValdis Liepa Research Scientist
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-10-15
Available2006-10-15
Created2006-10-10
Modified2006-10-12
Pages1
File TypeAdobe Acrobat PDF
File Size22298
File SHA-25652f0e3fde1a9e5da7cabebe64e31b9b519b525c4373e53285dd5974e880728bc
PDF Metadata AuthorDKAMINSKI
PDF Metadata ProducerAcrobat Distiller 7.0.5 (Windows) DKAMINSKI
FCC.gov SourcesFCC.gov 715680
