HEMC8256A2501C Remote Control for... - FCC ID P25HEMC8256A2501C
FCC ID P25HEMC8256A2501C

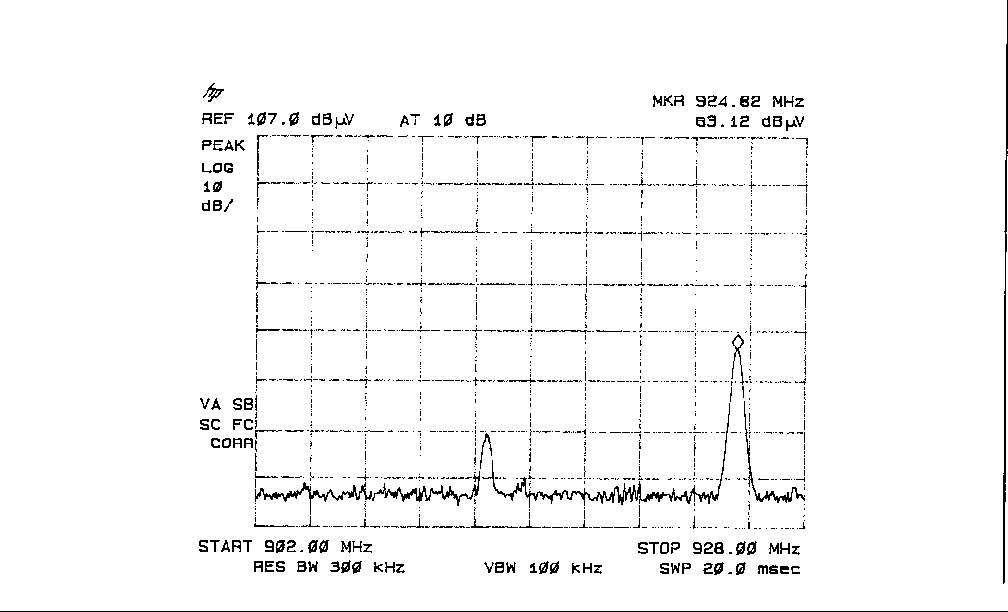

Bandwidth Plot
Remote Control for Playstation 2
Document preview loads when visible.
Document Details
| FCC ID | P25HEMC8256A2501C |
|---|---|
| Document ID | 183502 |
| Document Type | Test Report |
| Description | Bandwidth Plot |
| Applicant | Mad Catz, Inc. |
| Equipment Class | Remote Control for Playstation 2 |
| Product Code | HEMC8256A2501C |
| Application ID | GR5csZTTEf+mQ8rmQb8s+g== |
| Application Purpose | Original Equipment |
| Application Date | 2001-12-14 |
| Frequency Range | 924.8 MHz |
| FRN | 0007458433 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilbur Ng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2001-12-14 |
| Available | 2001-12-14 |
| Created | 2001-08-24 |
| Modified | 2001-08-24 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 33291 |
| File SHA-256 | bc2bcbcdc36a59a170dc531587662676af8800ebac0bf1c0fc3519ad52caecbd |
| PDF Metadata Producer | Acrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows |
| FCC.gov Sources | FCC.gov 183502 |
