DH142B VHF/UHF Booster Master Unit Test... - FCC ID P3TDH14-2B

FCC ID P3TDH14-2B

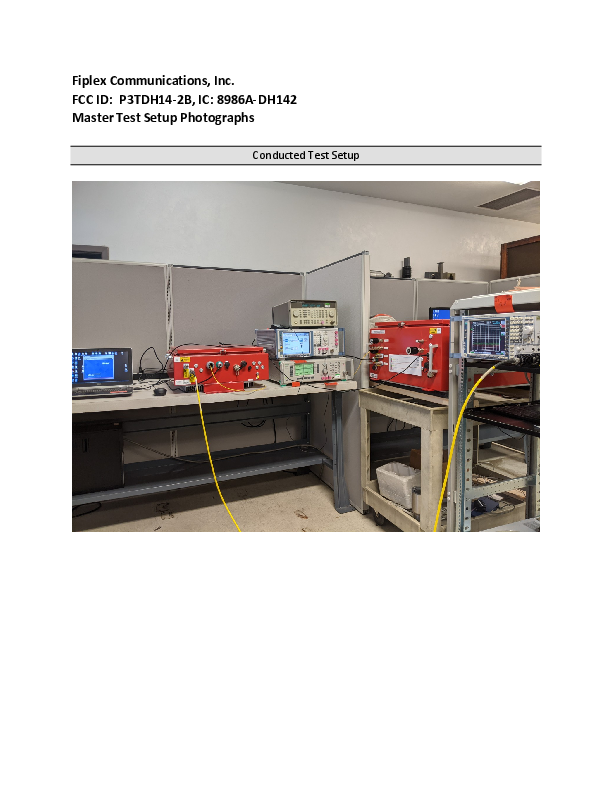

Test Setup Photos

VHF/UHF Booster Master Unit

by Fiplex Communications Inc

Document preview loads when visible.

Document Details

FCC IDP3TDH14-2B
Document ID5006386
Document TypeTest Setup Photos
DescriptionTest Setup Photos
ApplicantFiplex Communications Inc
Equipment ClassVHF/UHF Booster Master Unit
Product CodeDH142B
Application IDHrE7L71xuUfnbGree6kOvw==
Application PurposeOriginal Equipment
Application Date2020-11-19
Frequency Range150.8-156.248 MHz
FRN0005657499
Test FirmTimco Engineering, Inc.
Certified ByRicardo de Goycoechea CTO
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2020-11-19
Available2020-11-19
Created2020-11-10
Modified2020-11-10
Pages4
File TypeAdobe Acrobat PDF
File Size1688539
File SHA-256df3debd1b443a2f216ac63ee4e2c458b4455a990d56d900a007179cd1b14aa9c
PDF Metadata AuthorFranklin Rose IIA
PDF Metadata ProducerFranklin Rose Adobe PDF Library 20.13.96
FCC.gov SourcesFCC.gov 5006386
