FCC ID P4U-MOD153
2.4GHz modular transceiver
by Kar-Tech, Inc.
Grantee Code: P4U Product Code: MOD153
Latest application date: 2016-02-08
Device Images
FCC ID Device Details
| FCC ID | P4U-MOD153 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | P4U |
| Product Code | MOD153 |
| Applicant Business | Kar-Tech, Inc. 🇺🇸 |
| Related Domains |  kar-tech.com |
| Equipment Class | 2.4GHz modular transceiver |
| Test Firm | Shenzhen CTL Testing Technology Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2405-2480 MHz | Original Equipment | 2016-02-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

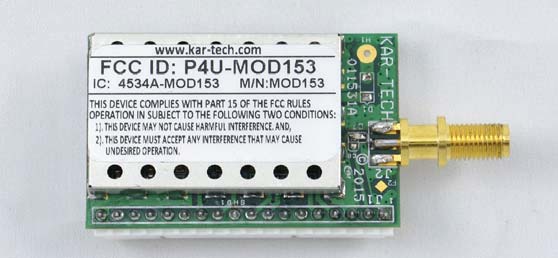

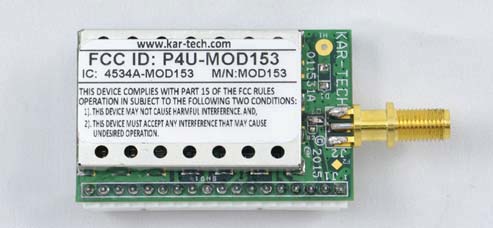

| User manual | Users Manual | 2016-02-08 | PDF 119 KB |
| Internal photos | Internal Photos | 2016-02-08 | PDF 112.5 KB |

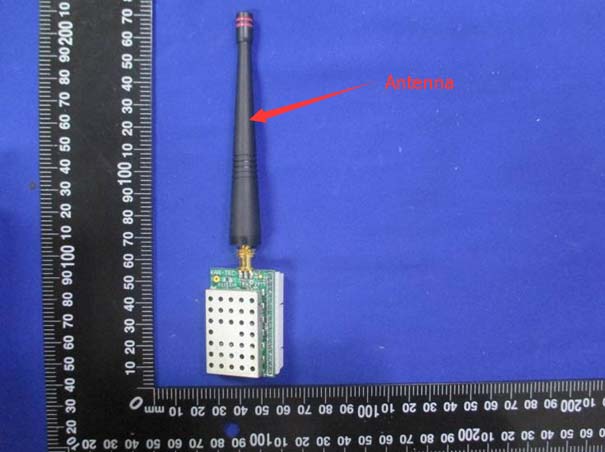

| External photos | External Photos | 2016-02-08 | PDF 236.3 KB |
| Label | ID Label/Location Info | 2016-02-08 | PDF 35.5 KB |

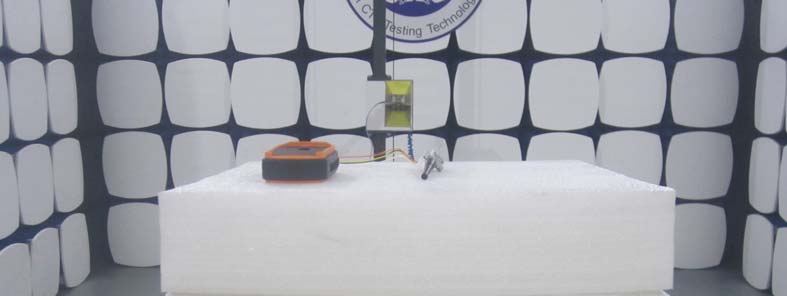

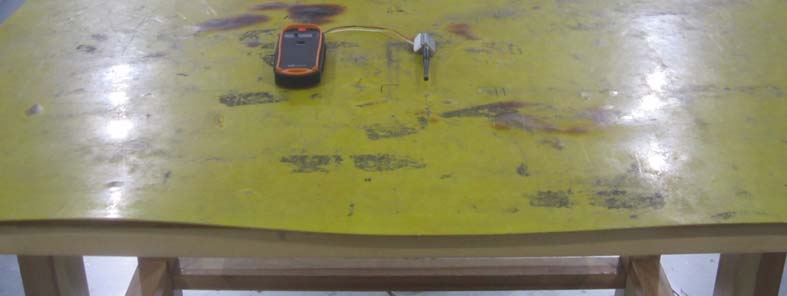

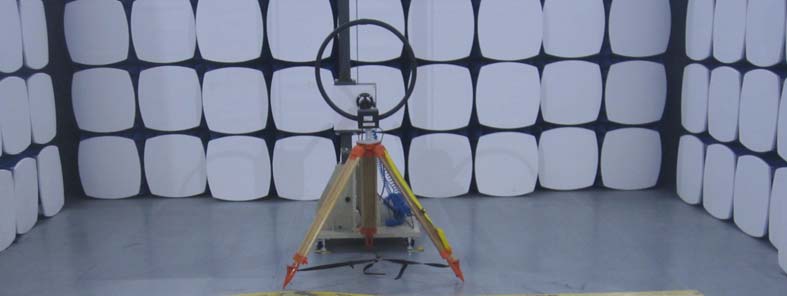

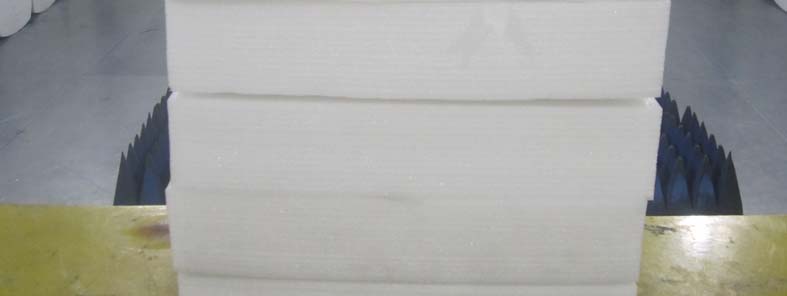

| Test setup | Test Setup Photos | 2016-02-08 | PDF 161 KB |
| Test report | Test Report | 2016-02-08 | PDF 1.8 MB |
| Cover letter | Cover Letter(s) | 2016-02-08 | PDF 45.7 KB |
| RF Exposure | RF Exposure Info | 2016-02-08 | PDF 71.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 562 KB | |
| Schematics Metadata only | Schematics | PDF 26.8 KB | |
| Operational Description Metadata only | Operational Description | PDF 32.1 KB |
Application Information
| Application ID | 6UWnRNfZNEf26qdpYWskCw== |
|---|---|
| Final Action Date | 2016-02-08 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0005835566 |
| Model | MOD153 |
| Frequency Range | 2405-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 2.4GHz modular transceiver |
| Responsible Party | Hassan Karbassi, President, Hassan@kar-tech.com , (414) 646-9444 |
| Test Firm | Tracy Qi, Shenzhen CTL Testing Technology Co., Ltd., qihui@ctl-lab.com  , 86-755-89486194 |
| TCB Email | stuart.beck@nemko.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power output listed is conducted. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other transmitter. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install this device. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 6UWnRNfZNEf26qdpYWskCw== | 2016-02-08 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules |
|---|---|---|
| 2405-2480 MHz | 0.0010000 | 15C |
Grants
TCB Grant - Application 6UWnRNfZNEf26qdpYWskCw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Nemko North America, INC. 303 River Road Ottawa, Ontario, K1V 1H2 Canada |
Date of Grant: 02/08/2016 Application Dated: 02/08/2016 |
| Kar-Tech, Inc. |
| 111 Enterprise Road |
| P.O. Box 180606, |
| Delafield, WI 53018 |
| Attention: Hassan Karbassi , President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | P4U-MOD153 |
| Name of Grantee: | Kar-Tech, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 2.4GHz modular transceiver |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2480.0 | 0.001 |
| Single Modular Approval. Power output listed is conducted. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other transmitter. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install this device. |
EAS Grant - Application 6UWnRNfZNEf26qdpYWskCw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Kar-Tech, Inc. 111 Enterprise Road P.O. Box 180606, Delafield, WI 53018 United States |
Date of Grant: 02/08/2016 Application Dated: 02/08/2016 |
| Attention: Hassan Karbassi , President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | P4U-MOD153 |
| Name of Grantee: | Kar-Tech, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 2.4GHz modular transceiver |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2405.0 - 2480.0 | 0.001 |
| Single Modular Approval. Power output listed is conducted. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other transmitter. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install this device. |
| Mail To: |
