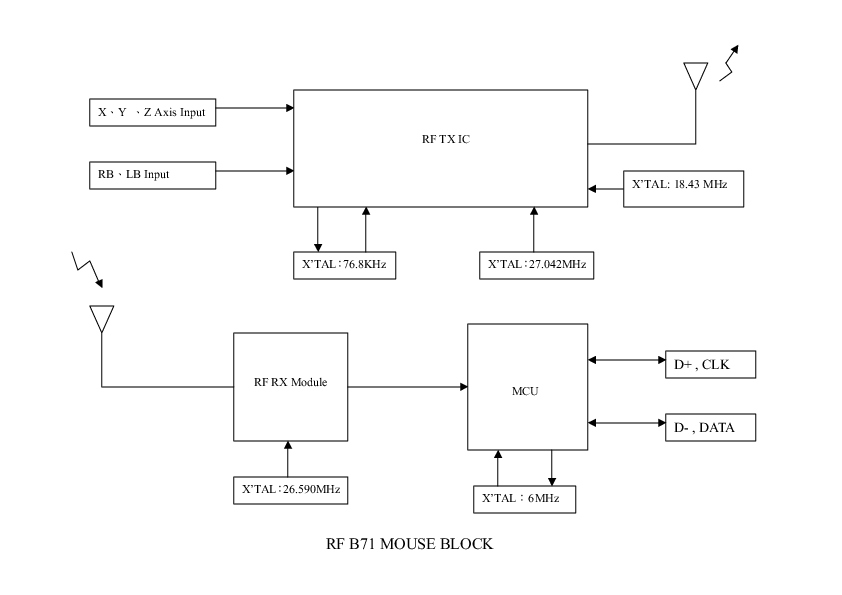

B71 WIRELESS OPTICAL MOUSE Block Diagram - FCC ID P5AB71

FCC ID P5AB71

BLOCK DIAGRAM

WIRELESS OPTICAL MOUSE

by ARESON Technology Corp.

Document preview loads when visible.

Document Details

FCC IDP5AB71
Document ID451349
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
ApplicantARESON Technology Corp.
Equipment ClassWIRELESS OPTICAL MOUSE
Product CodeB71
Application IDpNzg6wkRhI+/+GURdq0sVA==
Application PurposeOriginal Equipment
Application Date2004-07-20
Frequency Range27.04-27.045 MHz
FRN0017398694
Test FirmPEP Testing Laboratory
Certified ByERIC JONG R/D MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-07-20
Available2004-07-20
Created2004-07-15
Modified2004-07-15
Pages1
File TypeAdobe Acrobat PDF
File Size16832
File SHA-256b85ba99b5f435e00955cf48802d17bf93cabc2ac959fc5ab9daf3252d36b6483
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows)
FCC.gov SourcesFCC.gov 451349
