ORC250 DIGITAL AUDIO PLAYER Block Diagram - FCC ID P7CORC-250
FCC ID P7CORC-250
BLOCK DIAGRAM
DIGITAL AUDIO PLAYER
Document preview loads when visible.
Document Details
| FCC ID | P7CORC-250 |
|---|---|
| Document ID | 367624 |
| Document Type | Block Diagram |

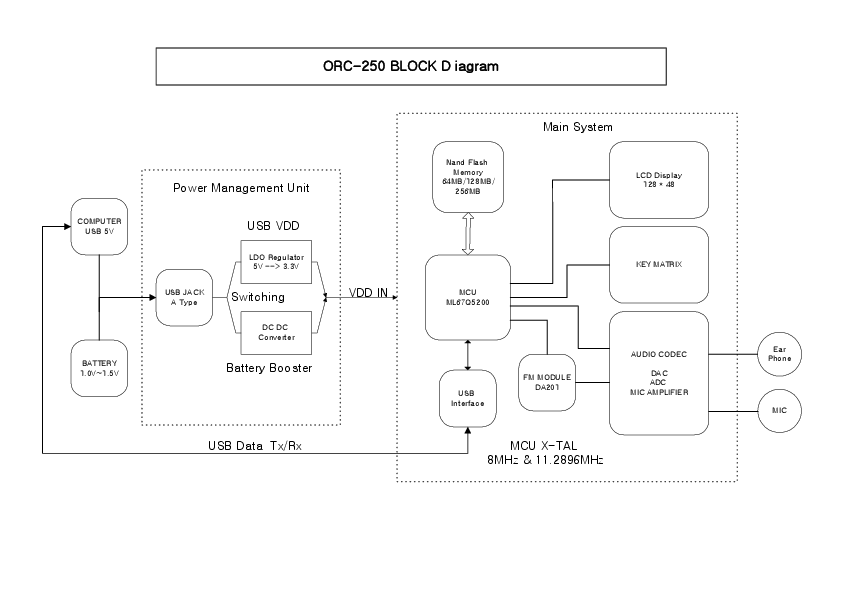

| Description | BLOCK DIAGRAM |
| Document Title | Visio-orc-250 block_diagram.vsd |
| Applicant | ORACOM Co., Ltd. |
| Equipment Class | DIGITAL AUDIO PLAYER |
| Product Code | ORC250 |
| Application ID | 5ag1cm6ZUlYgb+lZRg39mA== |
| Application Purpose | Original Equipment |
| Application Date | 2003-10-23 |
| FRN | 0006354146 |
| Test Firm | EMC Compliance LTD |
| Certified By | KWAN-SIK KIM SENIOR ENGINEER |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-10-23 |
| Available | 2003-10-23 |
| Created | 2003-10-03 |
| Modified | 2003-10-03 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 46812 |
| File SHA-256 | 58ece4dfadbbdc31b3f1f371a14857e0cbd4e3f34bfd29bb0f2a4c2098f72054 |
| PDF Metadata Author | smyoon |
| PDF Metadata Producer | Acrobat Distiller 6.0 (Windows) smyoon |
| FCC.gov Sources | FCC.gov 367624 |
