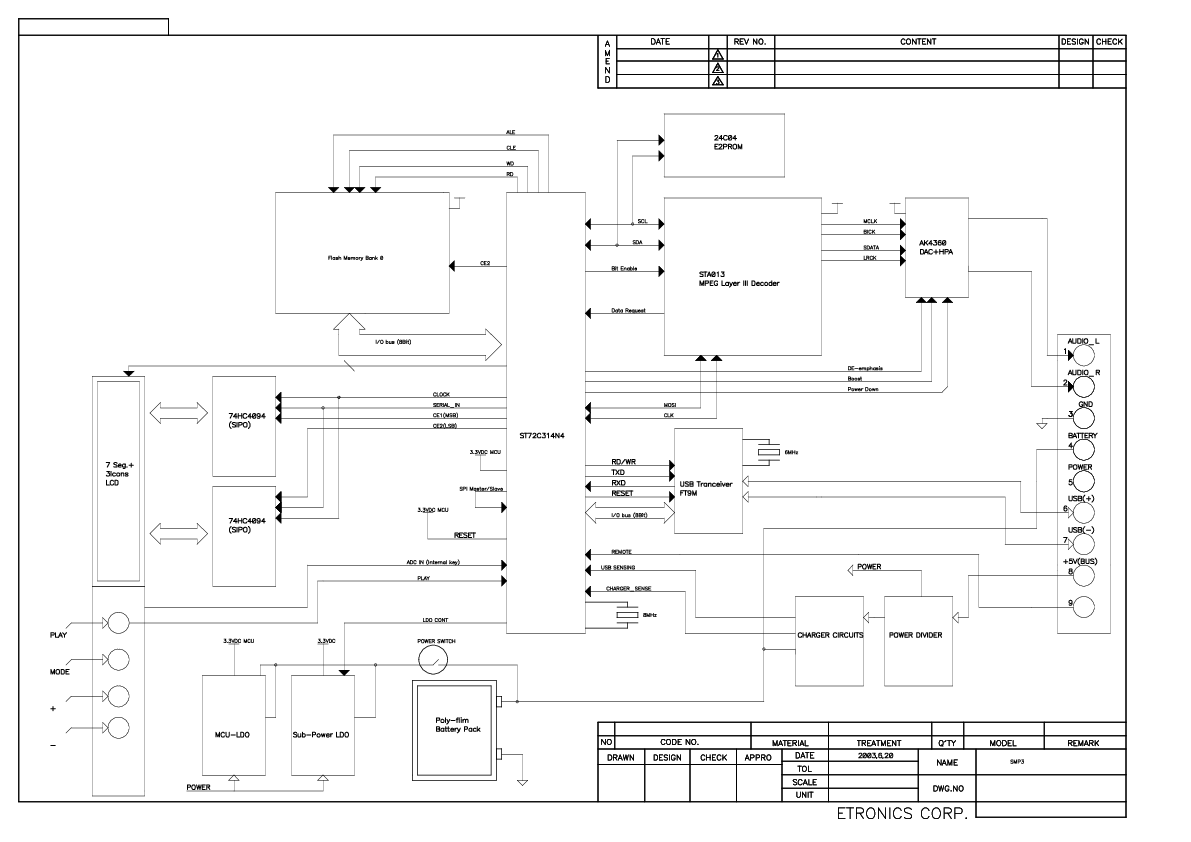

ETR0003 MP3 Player Block Diagram - FCC ID P87-ETR0003

FCC ID P87-ETR0003

BLOCK DIAGRAM

MP3 Player

by INKEL Corporation

Document preview loads when visible.

Document Details

FCC IDP87-ETR0003
Document ID334250
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleP-CAD EDA - [Sheet1]
ApplicantINKEL Corporation
Equipment ClassMP3 Player
Product CodeETR0003
Application IDjpcT8UZfV2dmJFj4oEf9bQ==
Application PurposeOriginal Equipment
Application Date2003-06-20
FRN0013201710
Test FirmInkel Testing Laboratory
Certified ByBon-Keun Koo Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-06-23
Available2003-06-20
Created2003-06-23
Modified2003-06-23
Pages1
File TypeAdobe Acrobat PDF
File Size24839
File SHA-256aade68c23352e19d635e60a263bb4d72f986e21c67cb45939fd3ce96fa7a7aec
PDF Metadata Author신현규
PDF Metadata ProducerP-CAD 2000 Schematic - [IM-3 block] Acrobat PDFWriter 5.0 Windows NT¿ë
FCC.gov SourcesFCC.gov 334250
