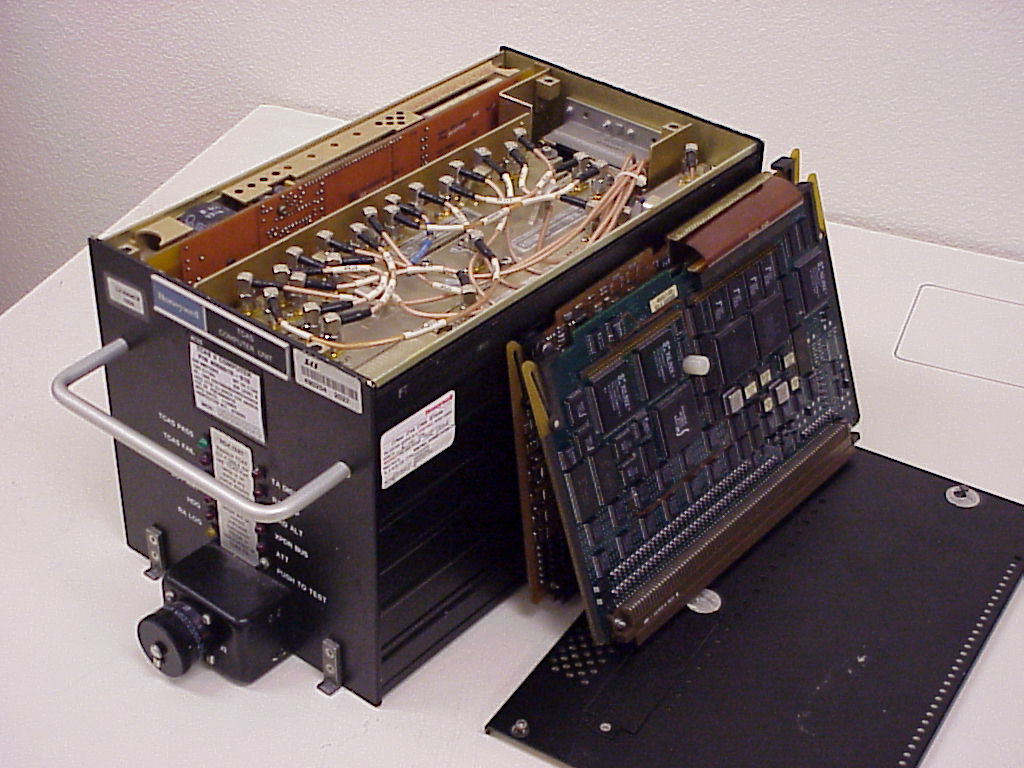

4066010 TCAS jpeg - FCC ID P8C4066010

FCC ID P8C4066010

Internal Unit Photos

TCAS

by ACSS an L-3 Communications and Thales Company

Internal Unit Photos

Document Details

FCC IDP8C4066010
Document ID380298
Document Typejpeg
DescriptionInternal Unit Photos
ApplicantACSS an L-3 Communications and Thales Company
Equipment ClassTCAS
Product Code4066010
Application ID3G8O7mqkQlLHoVDYaqKXFg==
Application PurposeChange in Identification
Application Date2004-01-28
Frequency Range1030 MHz
FRN0004999231
Certified ByPeter Beutelman Hardware Engineering Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-12-10
Available2004-01-28
Pages0
File TypeJPEG Image
File Size148892
File SHA-256b017d3b06cf60c90f13d9e64eea474b8d87f7c5a1062b064d4031d315fd12e2e
FCC.gov SourcesFCC.gov 380298, FCC.gov 380299
