TX1000 FM Transmitter Teardown Internal Photos - FCC ID P9BTX-1000
FCC ID P9BTX-1000

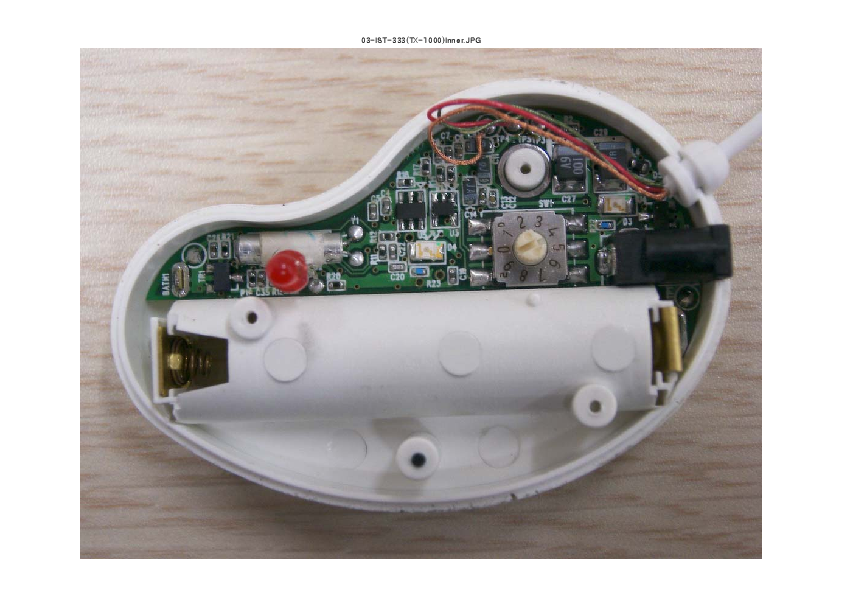

Internal Photos
FM Transmitter
Document preview loads when visible.
Document Details
| FCC ID | P9BTX-1000 |
|---|---|
| Document ID | 384503 |
| Document Type | Internal Photos |
| Description | Internal Photos |
| Document Title | ACDSee print job |
| Applicant | Jungsoft Co., Ltd. |
| Equipment Class | FM Transmitter |
| Product Code | TX1000 |
| Application ID | uRjE3PAzFqyUvywPGEBUZg== |
| Application Purpose | Original Equipment |
| Application Date | 2003-12-23 |
| Frequency Range | 88.1-88.7 MHz |
| FRN | 0004356663 |
| Test Firm | IST Co., Ltd |
| Certified By | H.C. Kim Manager ( AGENT ) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-12-23 |
| Available | 2003-12-23 |
| Created | 2003-12-23 |
| Modified | 2003-12-23 |
| Pages | 5 |
| File Type | Adobe Acrobat PDF |
| File Size | 473127 |
| File SHA-256 | 7ac93f4c2c1e0740f94ae2595c7dc46b2c8ad22378e0f66fb7d69a57df927e2e |
| PDF Metadata Author | <B1E8BDC2B3E2> |
| PDF Metadata Producer | PScript5.dll Version 5.2 Acrobat Distiller 5.0 (Windows) |
| FCC.gov Sources | FCC.gov 384503 |
