52101000 802.11b/g Outdoor Wi-Fi Cellular... - FCC ID P9J-52101000
FCC ID P9J-52101000
User Manual

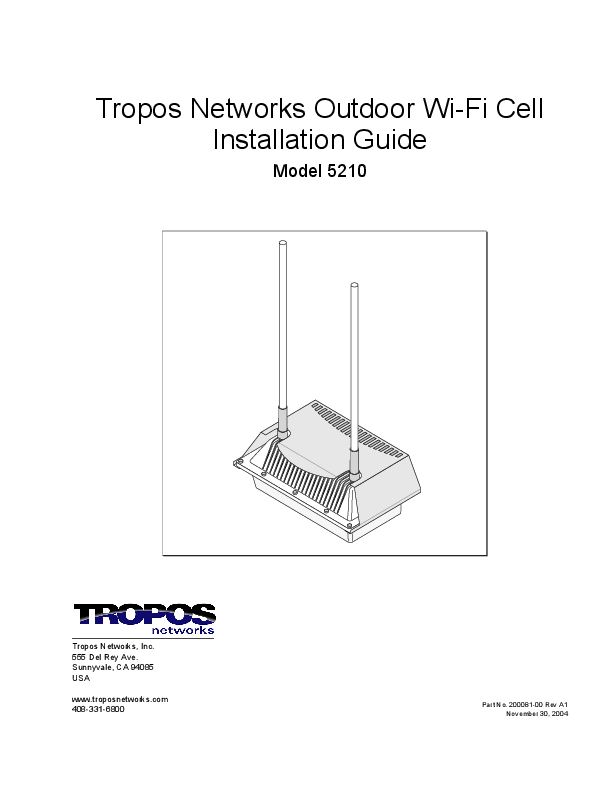

802.11b/g Outdoor Wi-Fi Cellular Base Station
Document preview loads when visible.
Document Details
| FCC ID | P9J-52101000 |
|---|---|
| Document ID | 493168 |
| Document Type | Users Manual |
| Description | User Manual |
| Document Title | Outdoor Unit Guide.book |
| Applicant | ABB Enterprise Software Inc. |
| Equipment Class | 802.11b/g Outdoor Wi-Fi Cellular Base Station |
| Product Code | 52101000 |
| Application ID | qXHxmWcXb962LQwI69+shw== |
| Application Purpose | Original Equipment |
| Application Date | 2004-12-01 |
| Frequency Range | 2412-2462 MHz |
| FRN | 0021871066 |
| Test Firm | Compliance Certification Services Inc |
| Certified By | Mike Heckrotte Engineer Manager (Agent) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2004-12-01 |
| Available | 2004-12-01 |
| Created | 2004-11-30 |
| Modified | 2004-11-30 |
| Pages | 64 |
| File Type | Adobe Acrobat PDF |
| File Size | 1565533 |
| File SHA-256 | fbc2c2f38851e3144780ce648aea497b10dc028b0041f2bc73bd4601818b8cc3 |
| PDF Metadata Author | barbara |
| PDF Metadata Producer | Acrobat Distiller 4.05 for Windows FrameMaker 6.0 |
| FCC.gov Sources | FCC.gov 493168 |
