110 Keyfob Radio Encoder Transmitter Schematics - FCC ID P9O110

FCC ID P9O110

Components

Keyfob Radio Encoder Transmitter

by RF Solutions Ltd.

Document preview loads when visible.

Document Details

FCC IDP9O110
Document ID293921
Document TypeSchematics

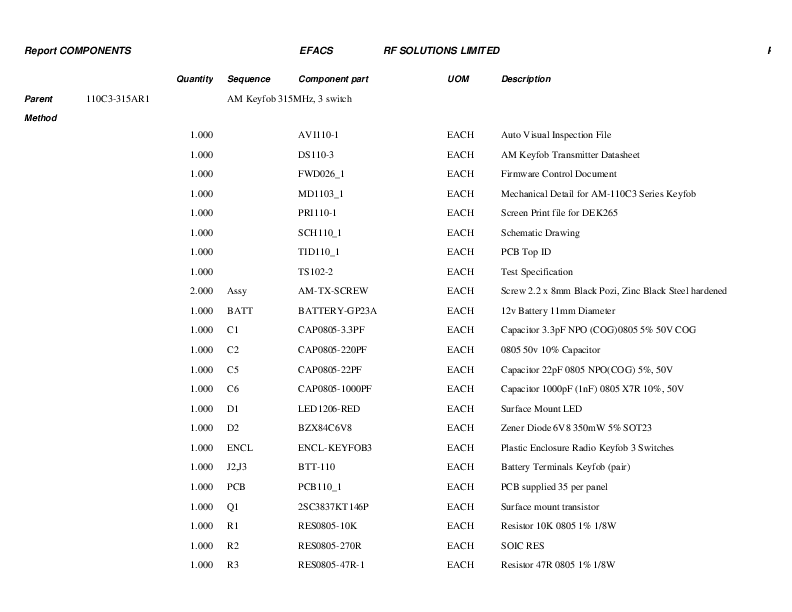

DescriptionComponents
ApplicantRF Solutions Ltd.
Equipment ClassKeyfob Radio Encoder Transmitter
Product Code110
Application IDcdW0zP4HsjeWKWWZ+gzImA==
Application PurposeOriginal Equipment
Application Date2003-01-07
Frequency Range315 MHz
FRN0006701353
Test FirmTUV SUD Product Service
Certified ByMr John Fairall
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-01-07
Available2003-01-07
Created2002-11-21
Modified2002-11-21
Pages2
File TypeAdobe Acrobat PDF
File Size6206
File SHA-25632fce794d2140fd288a7e41a581ff0713f1c99a73c207ec0dcc8f56ef0fb3965
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 293921
