MSAXSERIES The MSA Bacharach X30 & X50... - FCC ID P9R-MSAXSERIES

FCC ID P9R-MSAXSERIES

7-X30 & X50 BLE Antenna Datasheet.pdf

The MSA Bacharach X30 & X50 Fixed Refrigerant Gas Monitors are intended to be installed in non-classified, non-hazardous, permanent locations for the purpose of continuously monitoring indoor ambient air for specified refrigerant gases.

by MSA Innovation, LLC.

Document preview loads when visible.

Document Details

FCC IDP9R-MSAXSERIES
Document ID9113147
Document TypeTest Report

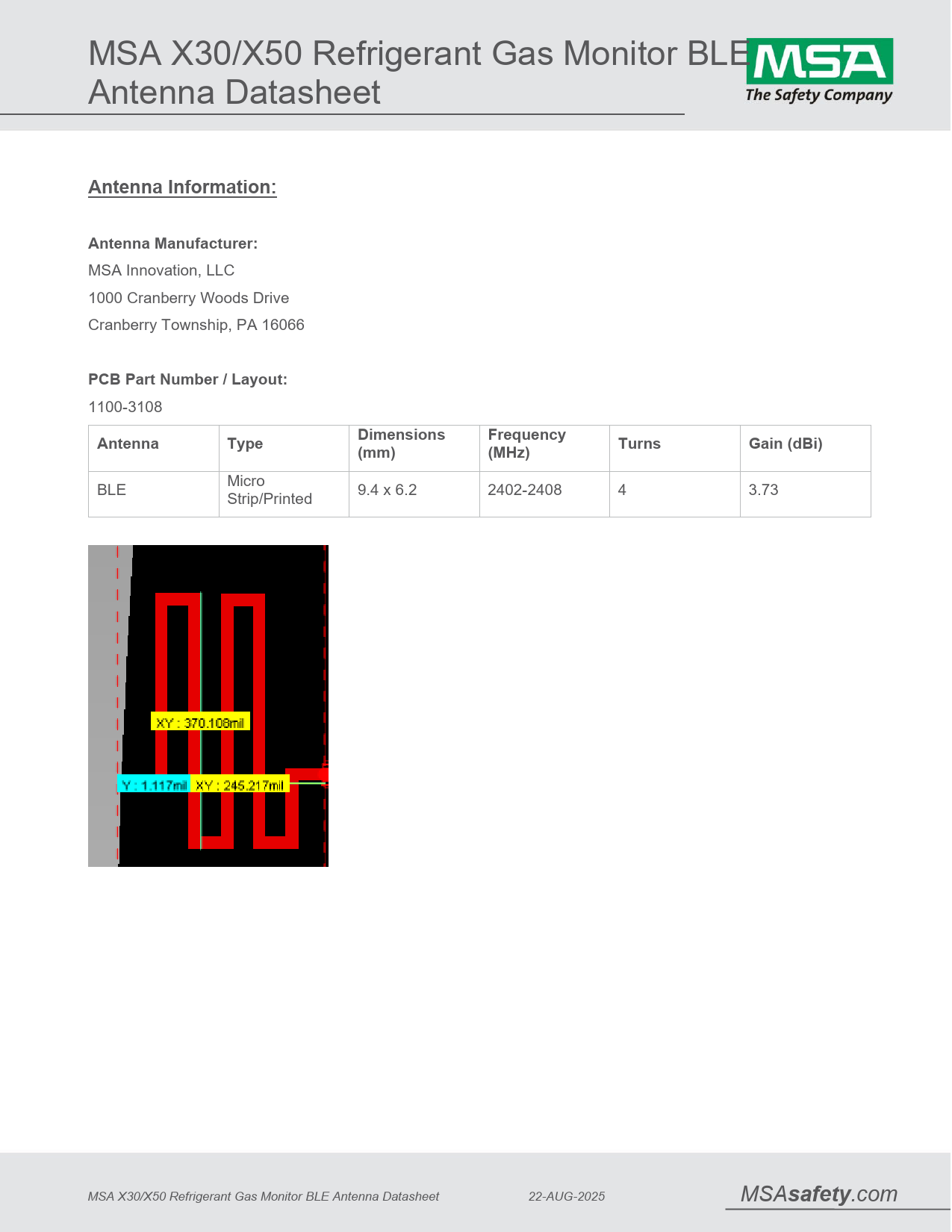

Description7-X30 & X50 BLE Antenna Datasheet.pdf
Document TitleGeneral Word Template_MSA-VBL
ApplicantMSA Innovation, LLC.
Equipment ClassThe MSA Bacharach X30 & X50 Fixed Refrigerant Gas Monitors are intended to be installed in non-classified, non-hazardous, permanent locations for the purpose of continuously monitoring indoor ambient air for specified refrigerant gases.
Product CodeMSAXSERIES
Application IDeiYqRN78cwZm0eoRSo8XHw==
Application PurposeOriginal Equipment
Application Date2026-03-05
Frequency Range2402-2480 MHz
FRN0031063308
Test FirmDEKRA Certification, Inc.
Certified ByTanjila Haque Principal Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Modular EquipmentDoes not apply
Composite DeviceNo
Submitted2026-03-04
Available2026-03-05
Created2025-09-23
Modified2025-09-23
Pages3
File TypeAdobe Acrobat PDF
File Size626134
File SHA-25616ec7f66db3a18ca8a4678637d7567f4829b2af52a4f7034dffa1d56d27da58d
PDF Metadata AuthorChris Borneo MSA
PDF Metadata ProducerChris Borneo Adobe PDF Library 25.1.213
FCC.gov SourcesFCC.gov 9113147
