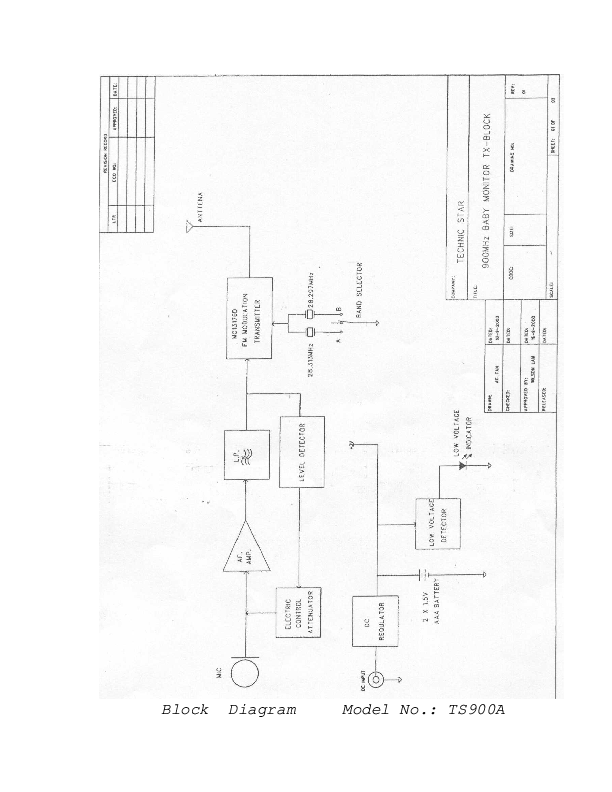

TS900A 900 MHz Baby Monitor Block Diagram - FCC ID PBITS900A

FCC ID PBITS900A

Block Diagram Small Sized

900 MHz Baby Monitor

by Technic Star Ltd.

Document preview loads when visible.

Document Details

FCC IDPBITS900A
Document ID123803
Document TypeBlock Diagram
DescriptionBlock Diagram Small Sized
ApplicantTechnic Star Ltd.
Equipment Class900 MHz Baby Monitor
Product CodeTS900A
Application IDwpBIVlRmXW8xx9KV3Nyaog==
Application PurposeOriginal Equipment
Application Date2000-11-21
Frequency Range905.469-906.84 MHz
FRN0008319956
Test FirmAudix Technology (Shenzhen) Co.
Certified ByRichard Mullen Group Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-11-02
Available2000-11-21
Created2000-11-02
Modified2000-11-02
Pages1
File TypeMicrosoft Word
File Size757340
File SHA-25629fd36f4a23e62e18208da1b42e52ff55cc23d186a02427fe52d08df4b128548
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 123803
