EZ0001 FM Car Hands-Free Kit Operational... - FCC ID PCTEZ-0001

FCC ID PCTEZ-0001

circuit description

FM Car Hands-Free Kit

by Zistel Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDPCTEZ-0001
Document ID125439
Document TypeOperational Description

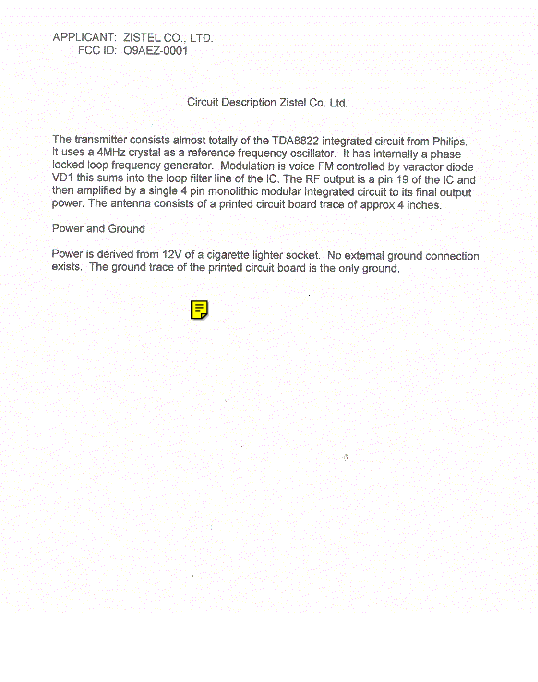

Descriptioncircuit description
ApplicantZistel Co., Ltd.
Equipment ClassFM Car Hands-Free Kit
Product CodeEZ0001
Application IDGpj/0hkSuUNrCzWTAPlZuA==
Application PurposeOriginal Equipment
Application Date2000-11-14
Frequency Range88.3 MHz
FRN9999999999
Test FirmTimco Engineering, Inc.
Certified ByChang Ryul Lee Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-11-14
Available2000-11-14
Created2000-10-30
Modified2000-11-14
Pages1
File TypeAdobe Acrobat PDF
File Size131159
File SHA-2569d967b4fd48a795f9be060e06d7cd0882e87d02fcbb2ecb4c6798e6ea95533f6
PDF Metadata ProducerAcrobat 4.05 Scan Plug-in for Windows Acrobat 4.05 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 125439
