CB3342 CONTROL BOX Teardown Internal Photos - FCC ID PCU-CB3342

FCC ID PCU-CB3342

Internal Photos

CONTROL BOX

by OKIN Refined Electric Technology Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDPCU-CB3342
Document ID4243650
Document TypeInternal Photos
DescriptionInternal Photos

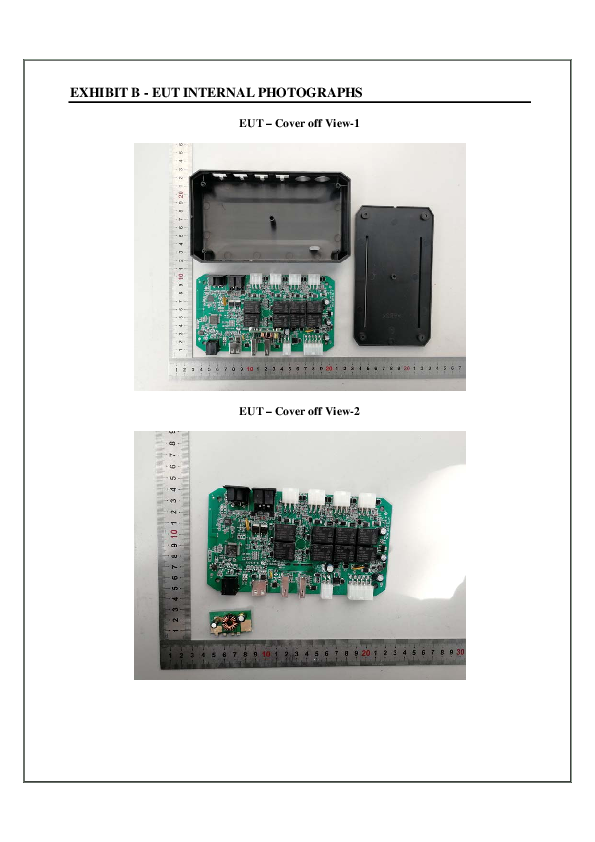

Document TitleEXHIBIT B_EUT INTERNAL PHOTOGRAPHS
ApplicantOKIN Refined Electric Technology Co., Ltd.
Equipment ClassCONTROL BOX
Product CodeCB3342
Application IDN+apzlOkKLT4PLvu46jxJw==
Application PurposeOriginal Equipment
Application Date2019-04-18
Frequency Range2402-2480 MHz
FRN0021959234
Test FirmBay Area Compliance Laboratories Corp. (Kunshan)
Certified ByMinglong Lei
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartYes
Submitted2019-04-18
Available2019-04-18
Created2019-04-10
Modified2019-04-17
Pages4
File TypeAdobe Acrobat PDF
File Size445141
File SHA-25634c64a1a4b2f45d203fcdf2b415894ee8fce75b2fae0bd835e753699f784e76f
PDF Metadata Authorbaclks162
PDF Metadata ProducerAcrobat Distiller 11.0 (Windows) baclks162
FCC.gov SourcesFCC.gov 4243650, FCC.gov 4243697
